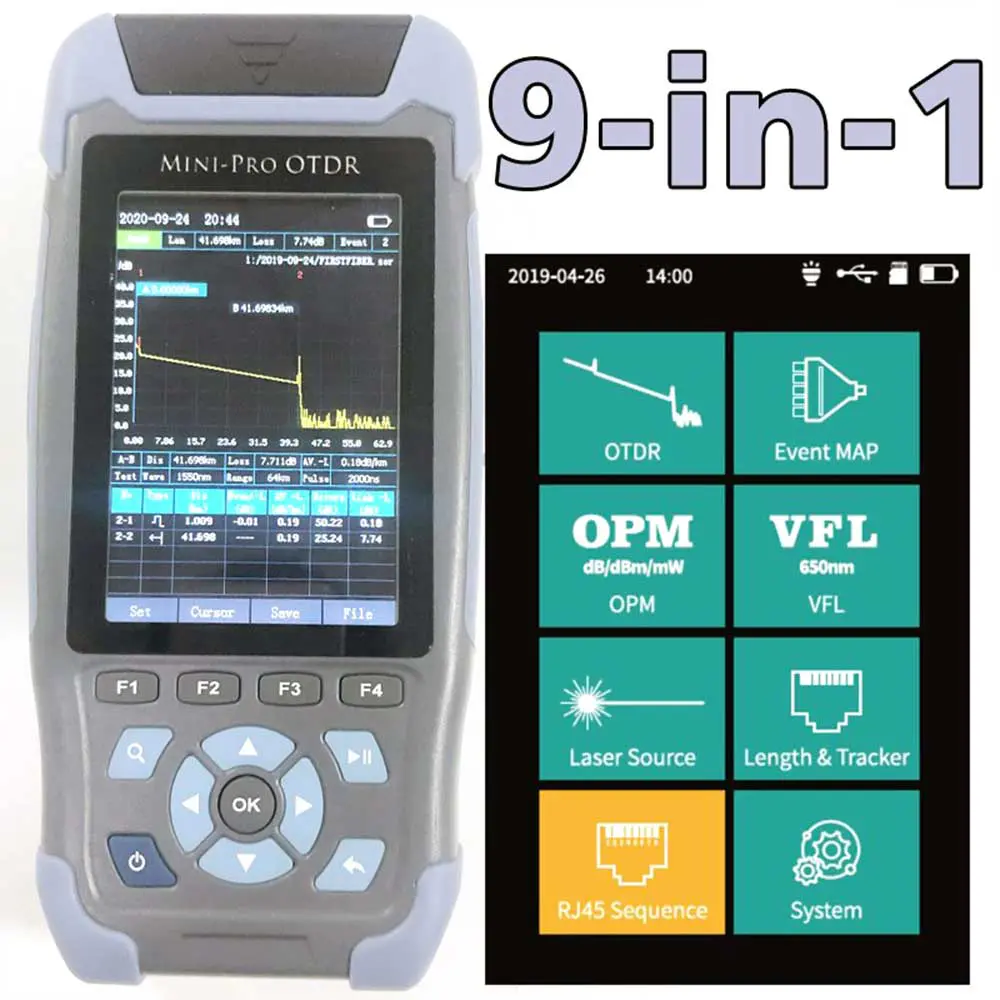

Mini pro OTDR Reflectometer 9 functions in 1 device OPM OLS VFL Event Map RJ45 Ethernet Cable Sequence Distance Tracker

Натисніть, щоб збільшити

Рефлектометр 9 функцій в 1 пристрої: OPM, OLS, VFL, Карта подій, RJ45 – OTDR DS-980REV mini pro (1310+1550)

Name: Рефлектометр 9 функцій в 1 пристрої: OPM, OLS, VFL, Карта подій, RJ45 - OTDR DS-980REV mini pro (1310+1550)
SKU: 15251
Availability: InStock

12,630грн.

Є в наявності

Add to compare

Додати до списку бажань

Артикул: 15251 Категорії: Обладнання, OTDR

Опис
Додаткова інформація

Опис

DS-980REV mini pro OTDR Reflectometer 9 functions in 1 device OPM OLS VFL Event Map RJ45 Ethernet Cable Sequence Distance Tracker. (AUA900D)

As fiber optics plays more and more important role in modern telecommunication and CATV networks, the requirements to the construction, test and maintenance of fiber optics links also become more prominent. DS-980REV OTDR handheld design, compact and lightweight, easy to carry. Event information through TFT color display and data storage capabilities. Through the USB interface, the test data can be uploaded to the PC, to facilitate the post-processing, archiving and printing.

9 Functions in 1 device

1)  OTDR
2)  EVENT MAP
3)  Optical Light Source
4)  Optical Power Meter (Wavelength: 850/1300/1310/1490/1550/1625nm)
5)  Visual Fault Locator
6)  RJ45 Ethernet Cable Sequence
7)  Ethernet Cable Distance
8)  Ethernet Cable Tracker
9)  LED Light

Download Datasheet

Download User Manual

Download Printed/PDF Testing Report

Speciﬁcation General

Model	DS-980REV
Display	Colorful Screen, 3.5 inch
Interface	1xUSB, 1xOTDR, 1xVFL, 1xOPM, 1xCharging Port 1xRJ45 Port
Power Supply	100V(ac) to 240V(ac), 50~60Hz
Battery	4000mAH Lithium battery Operating Time: 12hours, Telcordia GR-196-CORE
Power Saving	Back light: 0% to 100%, Auto oﬀ: 10 to 60mins
Data Storage	Internal memory: 500 curves, TF card supported
Language	English in default
Operating temperature	-10℃~+50℃, ≤95% (non-condensation)
Storage Temperature	-20℃~+75℃, ≤95% (non-condensation)

OTDR TestIing parameter

Model	DS-980REV
Pulse Width	3ns to 10us
Distance Range	3m to 64km
Dynamic Range	24/22dB
Sampling Resolution	Minimum 16cm
Sampling Point	Maximum 65K
Linearity	≤0.05dB/dB
Averaging Time	5s, 15s, 30s, 60s, 120s, 180s
Distance Accuracy	±(1m+measuring distance×3×10^-5+sampling resolution ) ( excluding IOR uncertainty)
IOR Setting	1.0000~2.0000
Unit	km
OTDR Trace Format	Telcordia universal, SOR, issue 2(SR-4731)
Event/Atten.Dead Zone	3/8m
