Mini (micro) Media Converter
10/100/1000BASE-T to 1000BASE-X SFP slot (port)

  Introduction:

Datasheet:

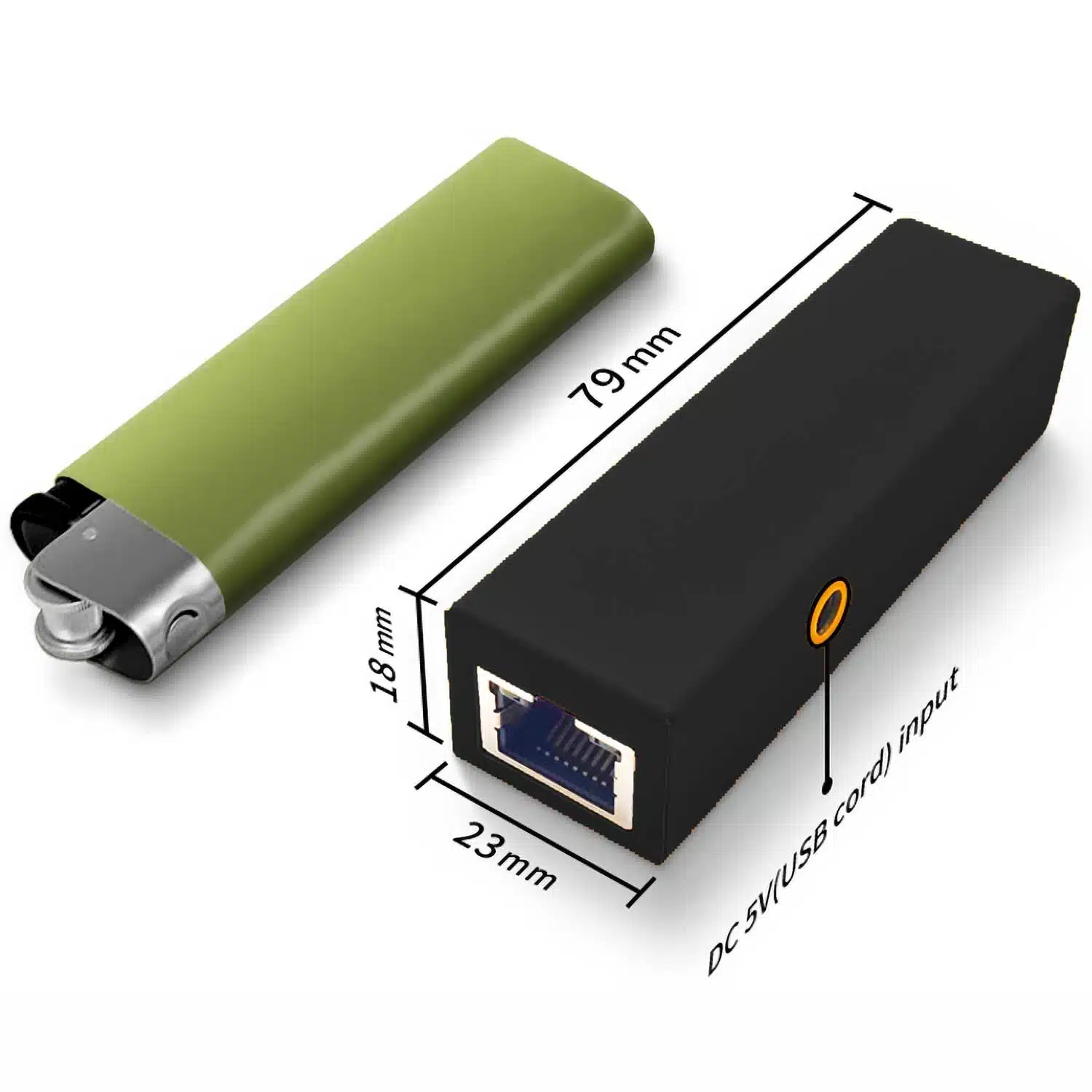

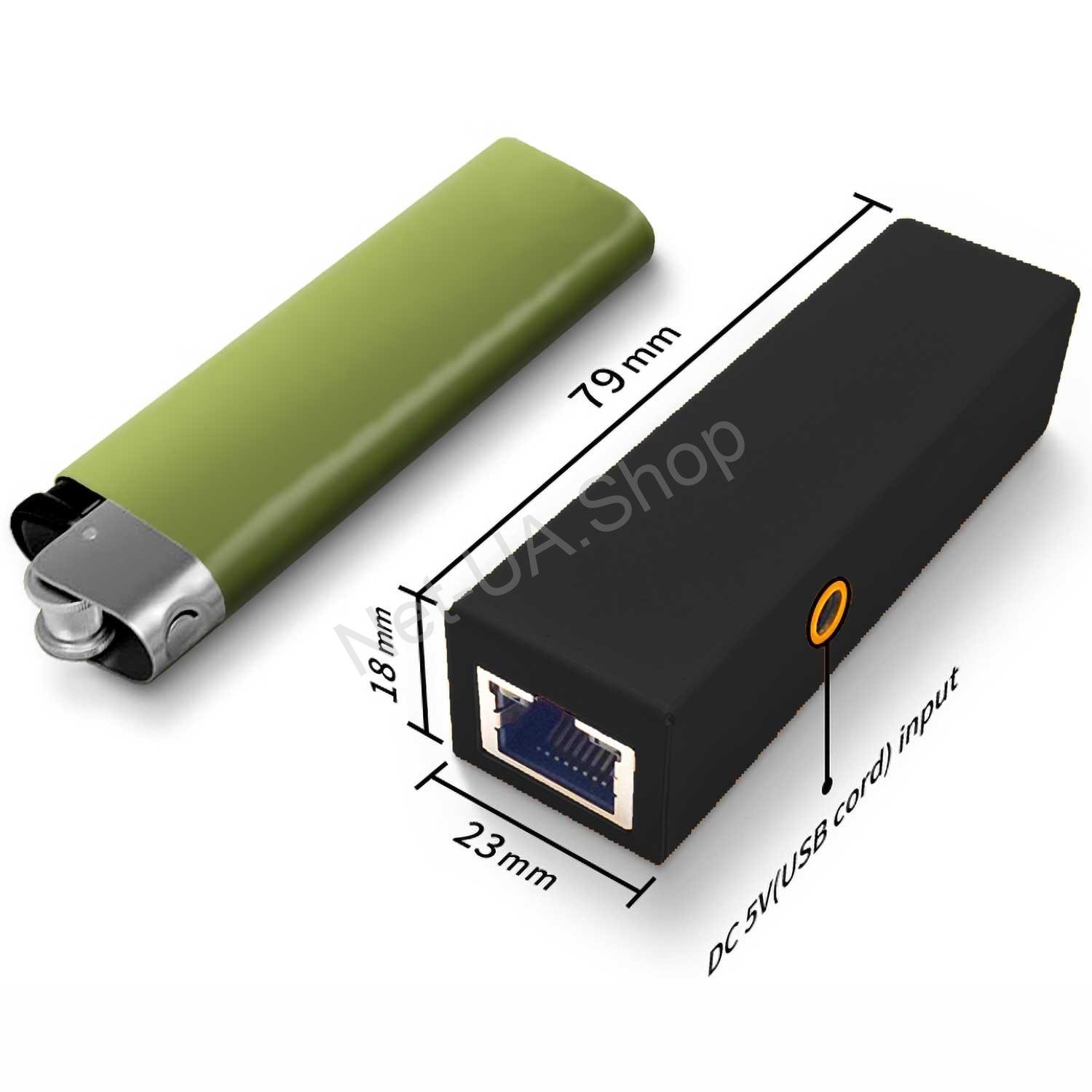

DS-MC1N-G0101Micro is the ultra-compact plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements. It can be easily installed in tight places or conveniently slip into any pocket or laptop carrying case for easy portability with its ultra-compact size (79*23*18mm) and ultra-light weight (57 g).

This ultra-compact media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. So, this Ultra-compact media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn’t available. For applications not utilizing USB power, this converter is also available with a 5V AC/DC power adapter, providing compatibility with electrical outlet types.

  Features:

• ● Ultra-compact size (79*23*18mm) and ultra-light weight (57g)
  ● 10/100/1000Base-T to 1000Base-X
  ● SFP slot for flexible long-distance transmission
  ● USB powered for easy portability or used with the included power adaptor
  ● Auto-negotiation
  ● Auto-MDI/MDIX
  ● Plug-and-Play
  ● Lower jitter
  ● Lower latency
  ● Ultra low power dissipation＜1.2W
  ● Support Jumbo frame 10Kbytes
  ● Support watchdog, automatically reboot if frozen
  ● Operation temperature: -20℃~70℃
