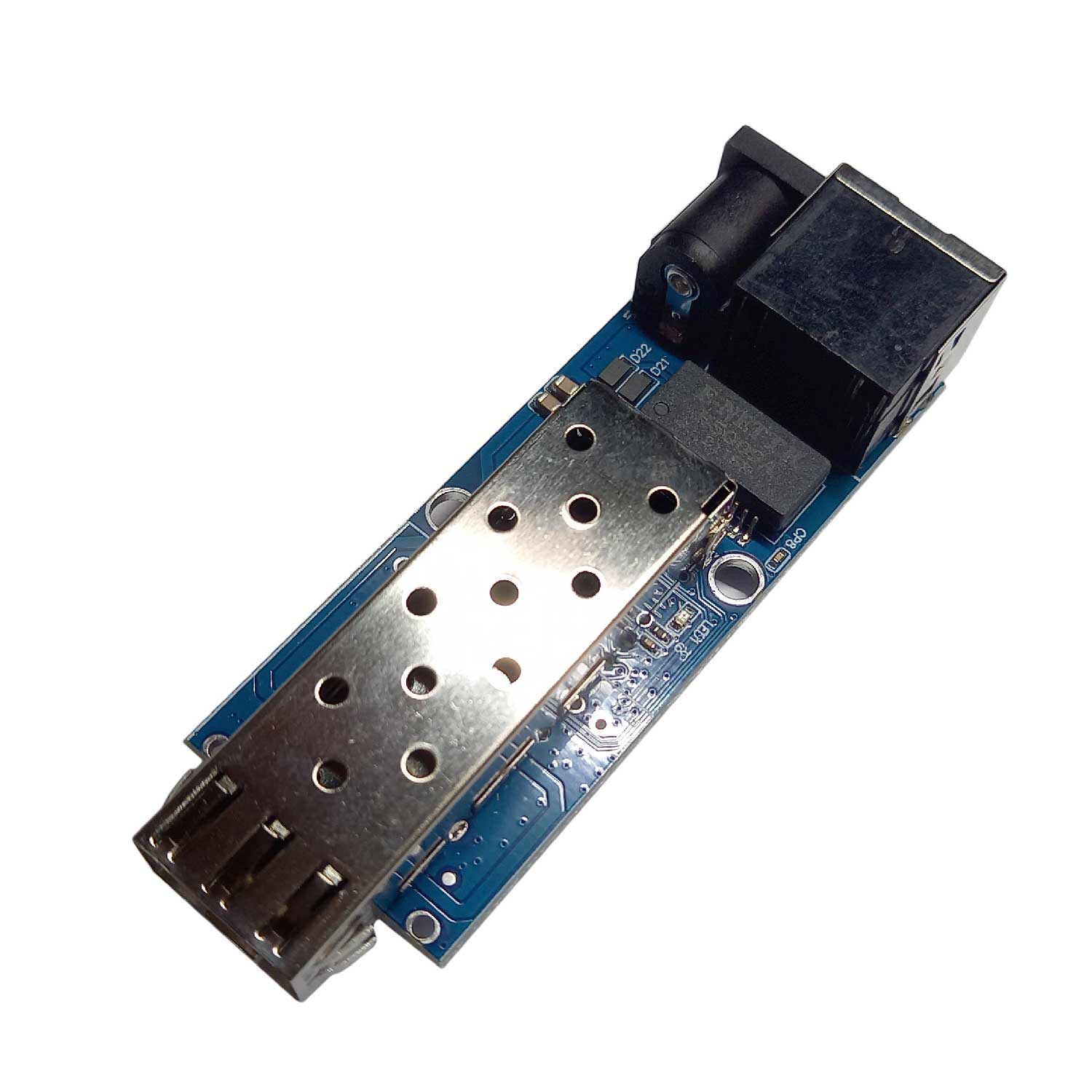

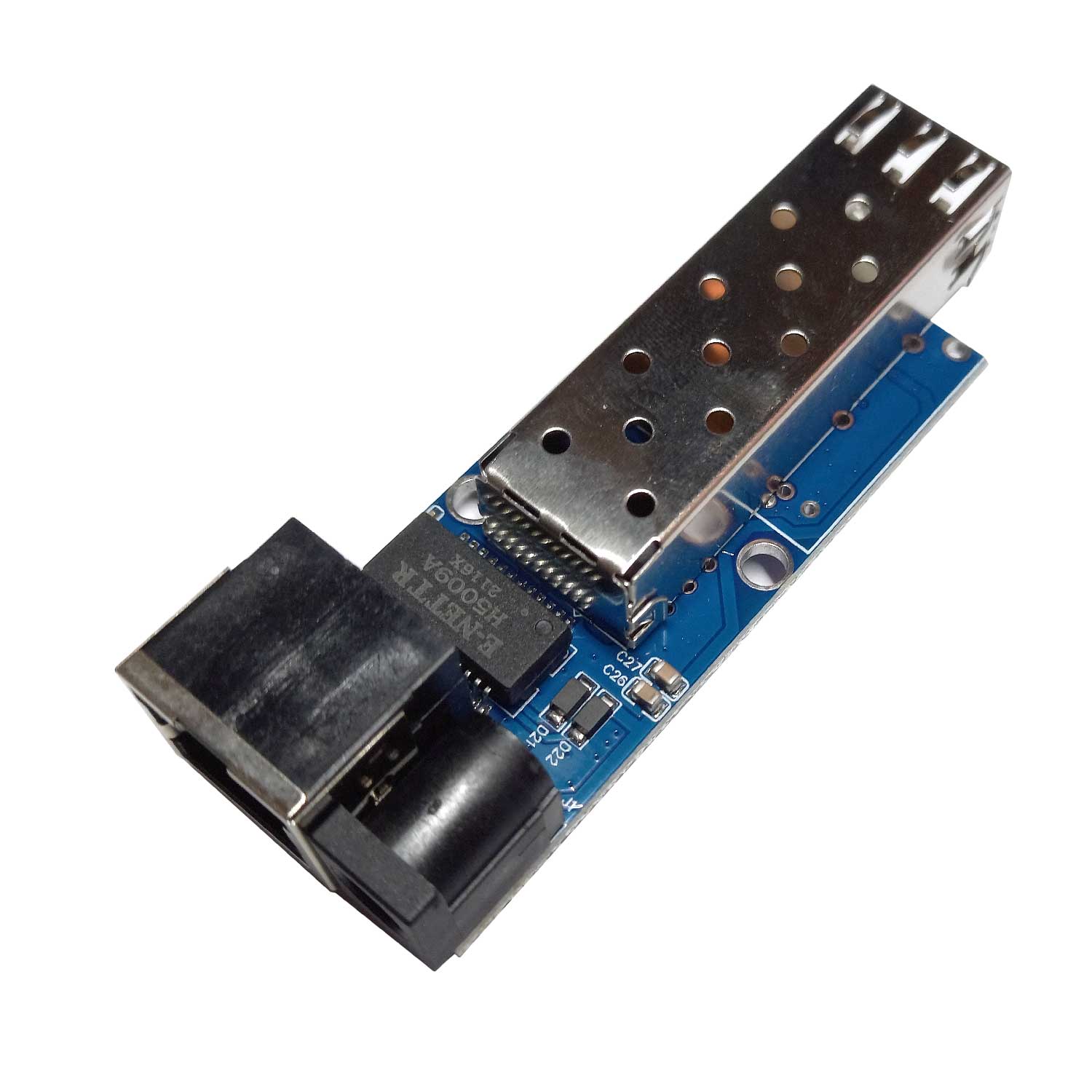

Міні Медіа конвертер з POE – без корпусу

1000Base-X (1G) SFP слот (порт)  в RJ45 10/100/1000 Base-T

Datasheet:

POE Reverse switch board fiber media converter with 1sfp +1* 10/100/1000Mbps RJ45 Ethernet ports POE

Features

• Support the switch between 10/100/1000Base-T and 1000Base-SX/LX
• 1*1.25Gbps full-duplex fiber ports and 1*1000M Ethernet ports with auto-negotiation function
• Support 1000M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation function
• Each port has the complete LED Indicator light
• There are 3 mode available. They are single mode single fiber, single mode dual fiber and multi mode dual fiber.
• Support IEEE802.1d Spanning Tree
• Support high performance QoS function on each port,support broadcasting storm control
• Support 5-24V voltage input through network cables from ending equipment.
• 4/5+,7/8- are for power supply.
• 5-24V DC voltage output.
• Internal 4K MAC Address Entities
• Support 9216 bytes Jumbo packet
• Support IEEE 802.3x flow control and back pressure control
• Require no configuration and will instantly operate as soon as you power it up
•  Low power consumption chip with heat sink built in to ensure longtime efficient operation.
