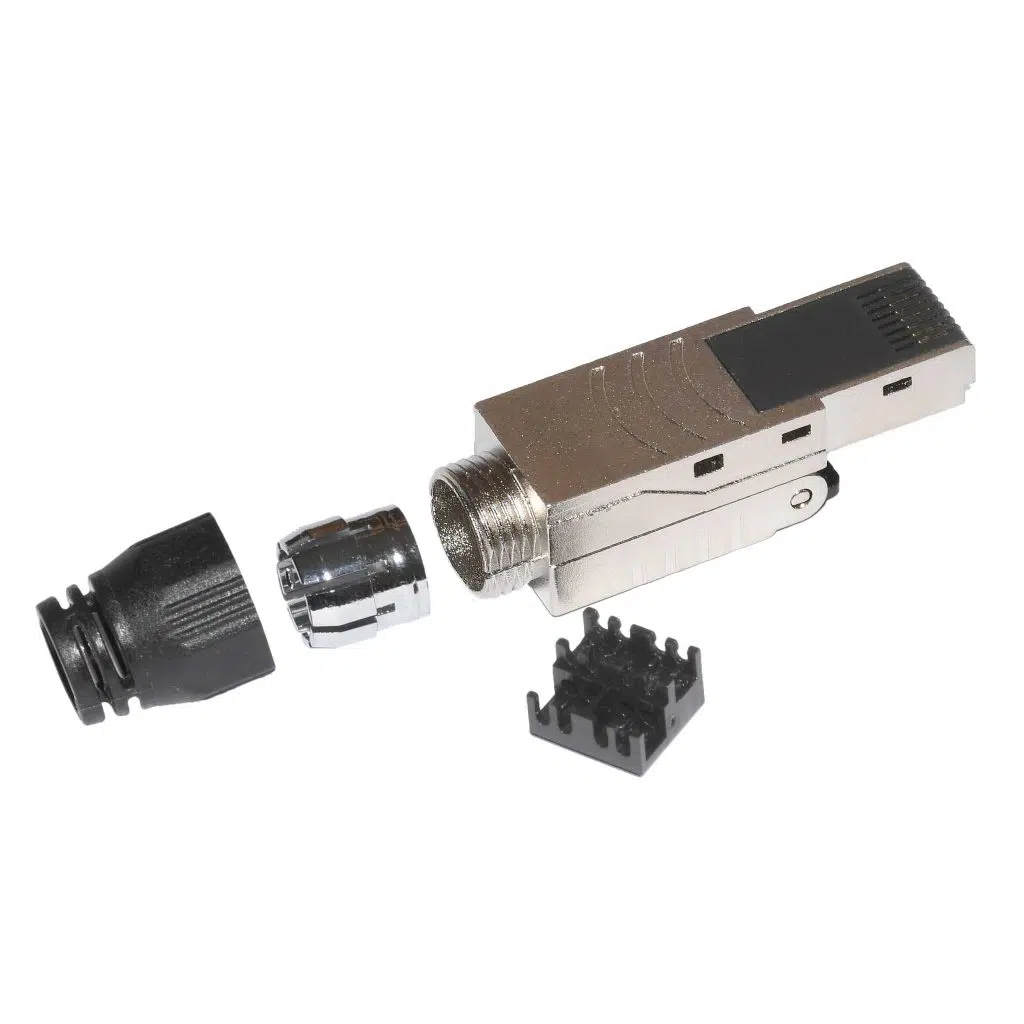

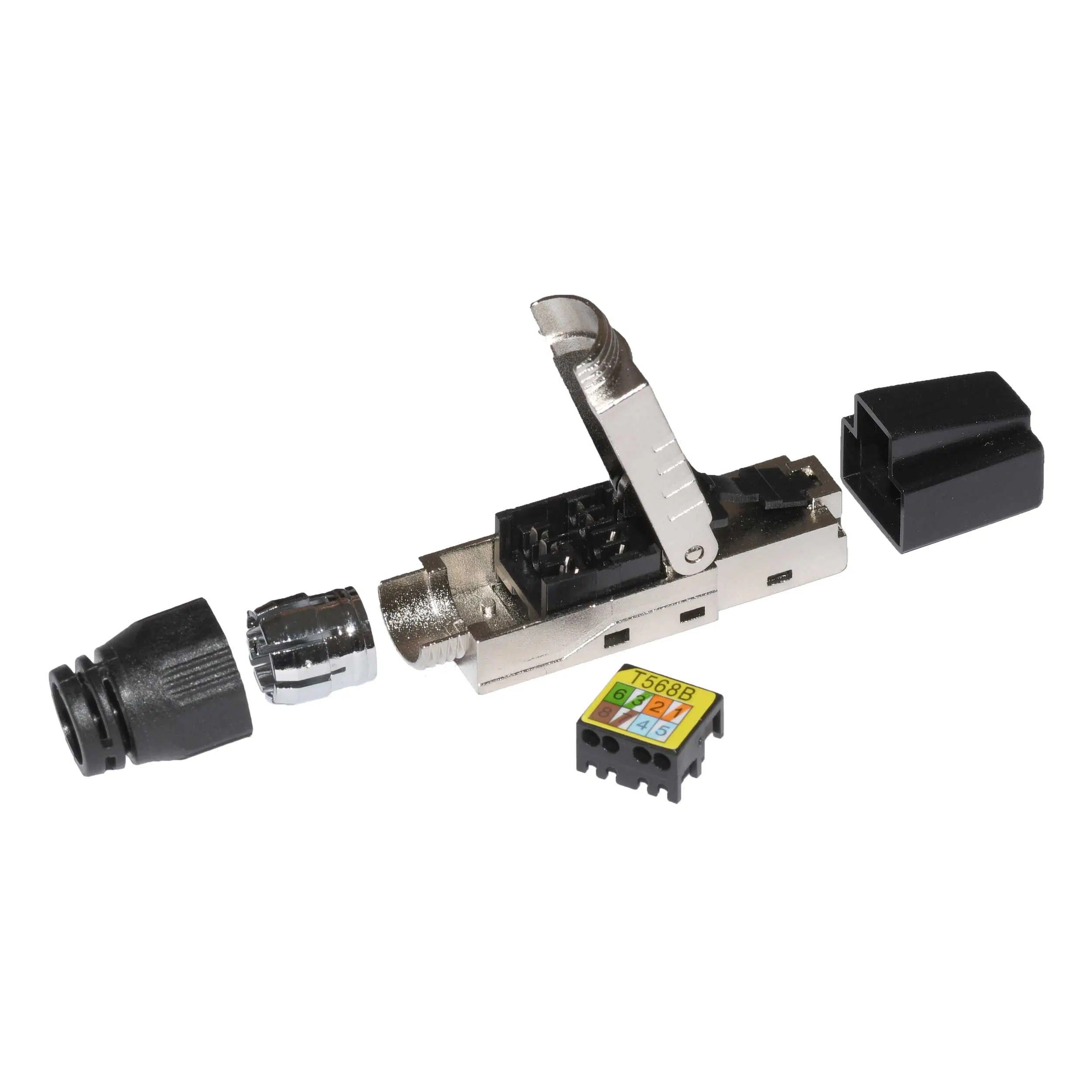

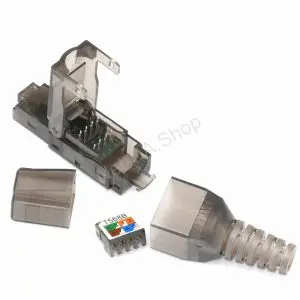

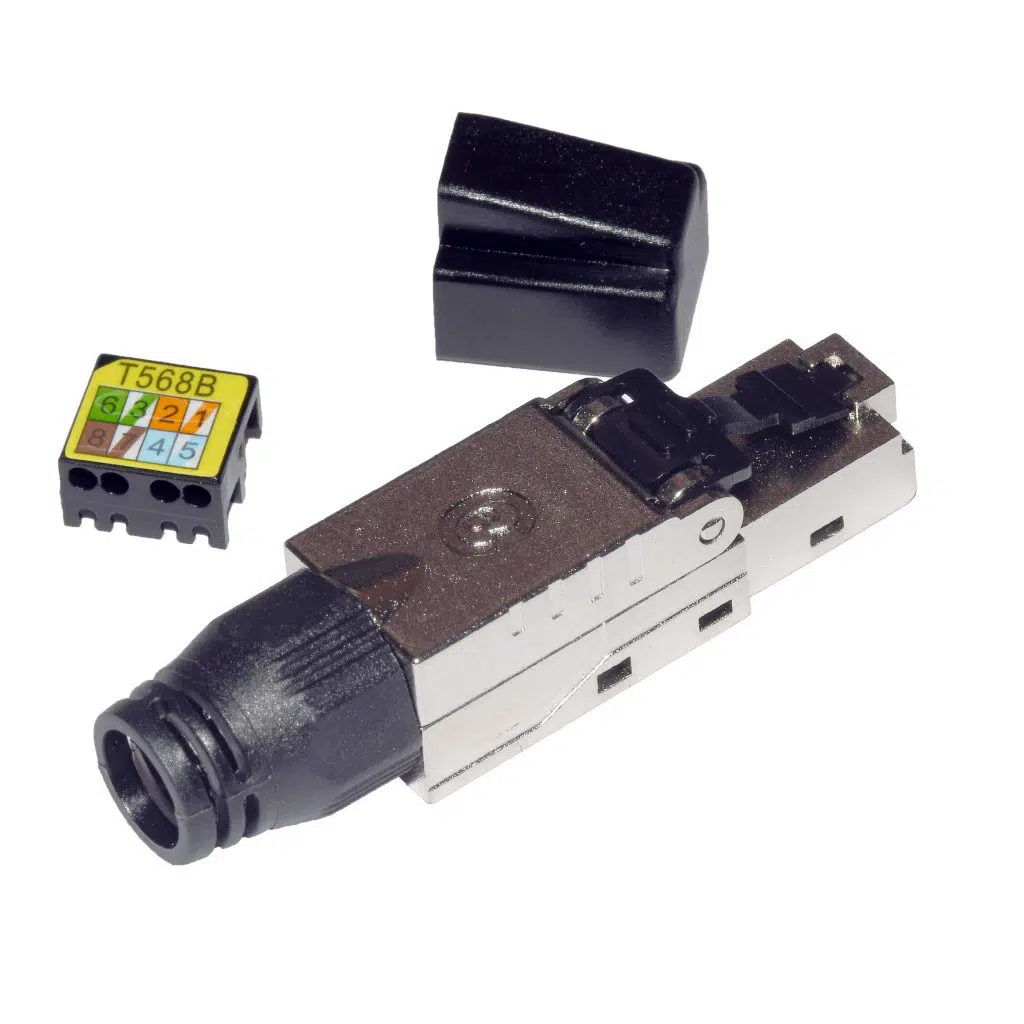

Професійний промисловий конектор RJ45 (8P8C) Cat.6a STP (безінструментальний, з цанговим затискачем)

Industrial Plug RJ45 Cat.6A – STP – Field Module Plug Sleeve

Datasheet:

Product Detail:

• CAT6A Class Ea RJ45 plug to be assembled in the field
• UTP & FTP TYPE: one Design

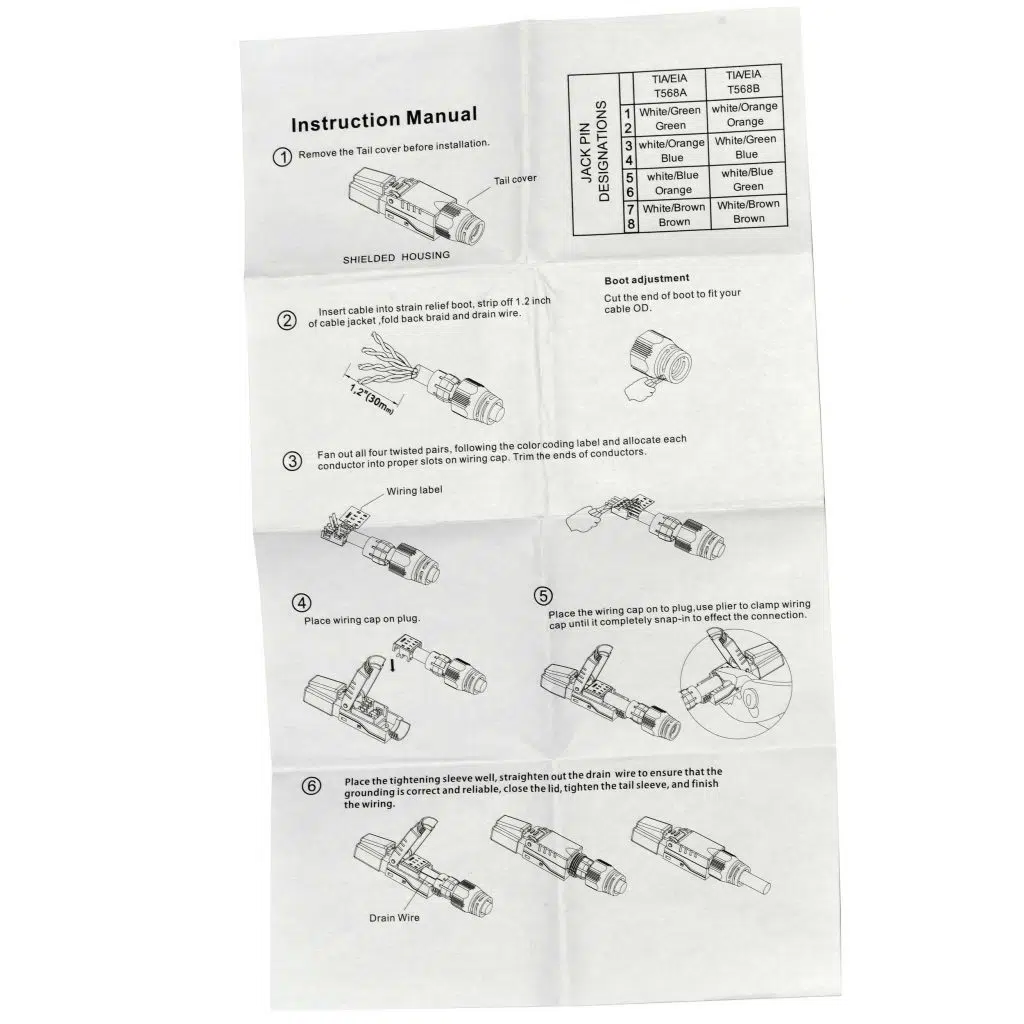

• Easy Assembly-easily terminated in the field in 2 minute without any special tools
• Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
• Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.46 to 0.76 mm
• Transmission Characteristics: CAT6A per ISO/IEC 11801 Ed.2.2:2011-06
• Compliance with class Ea to ISO/EIC 11801 Ed.2.2.2011-06,DIN EN 50173-1:2011-09 10 GB it Suitable according to IEEE 802.3an
• Suitable for Power over Ethernet (PoE, PoE plus, and UPoE)
• Cable Jacket Diameter from 6 to 9.5 mm
• Adjustable Strain Relief (6mm to 9.5 mm Cable OD)
• Load Bar for Faster and Easier Wire Pattern Termination
• Reconnectable

Features:

• Operation temperature: -40℃ to 60℃，Relative humidity: 85% (30℃)，Air pressure: 70-106 kPa.
• Gold Plated Phosphor Bronze Blade: phosphor bronze and gold plating (3-50 μinch), mating durability not less than 750 cycles.
• Anti-burn performance: product made from KirsitePC or PCB(UL94V-0), meeting the international standard
• Intermediate resistance: no more than 20m ohm in normal atmosphere pressure (not including bulk resistor)
• Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure
• Intensity of anti-currency: DC 1,000V (AC,700V), no puncture and flash-over phenomenon in one minute
• Retention strength: 7.7 kg between jack and plug
• Label: clear label to ensure easy to management.
