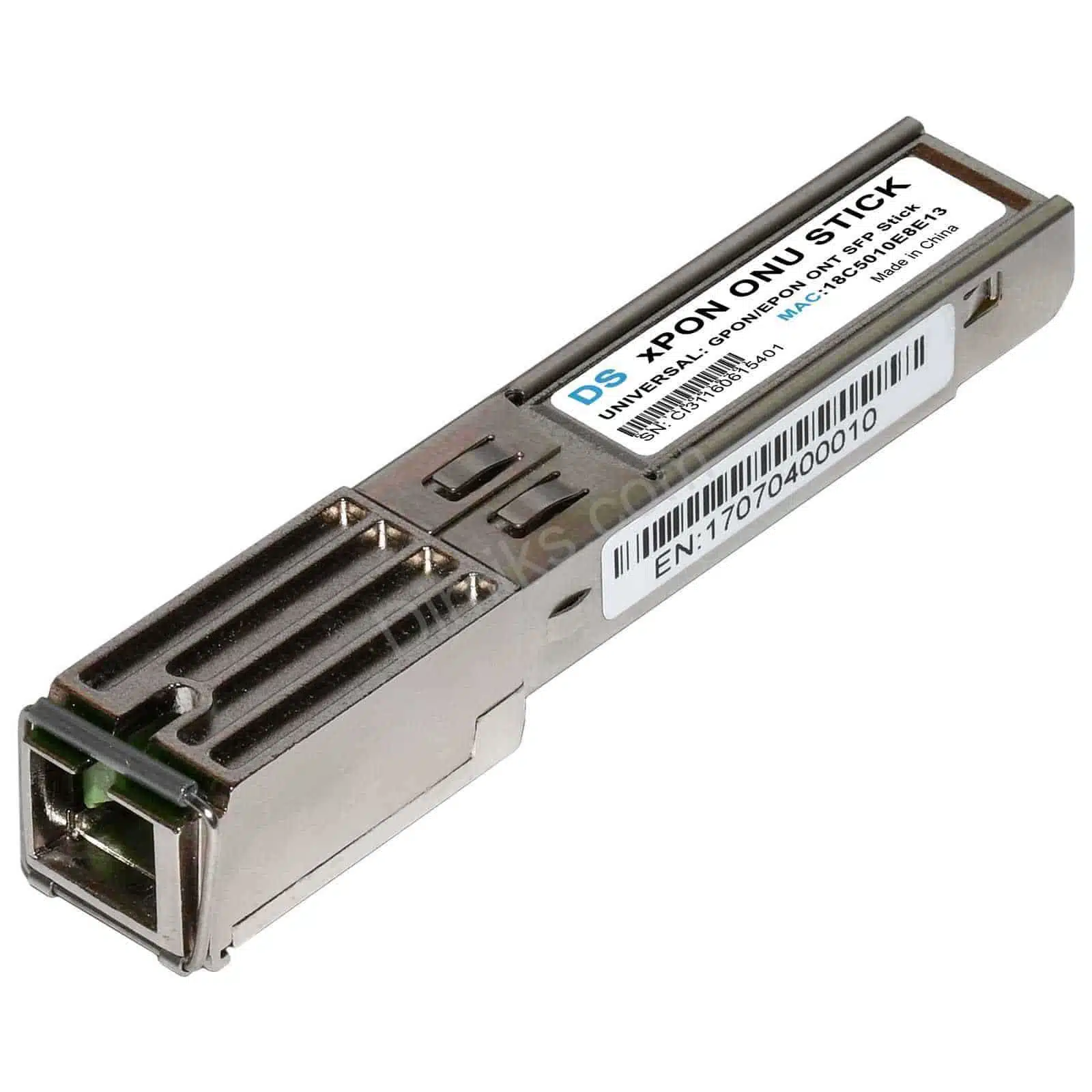

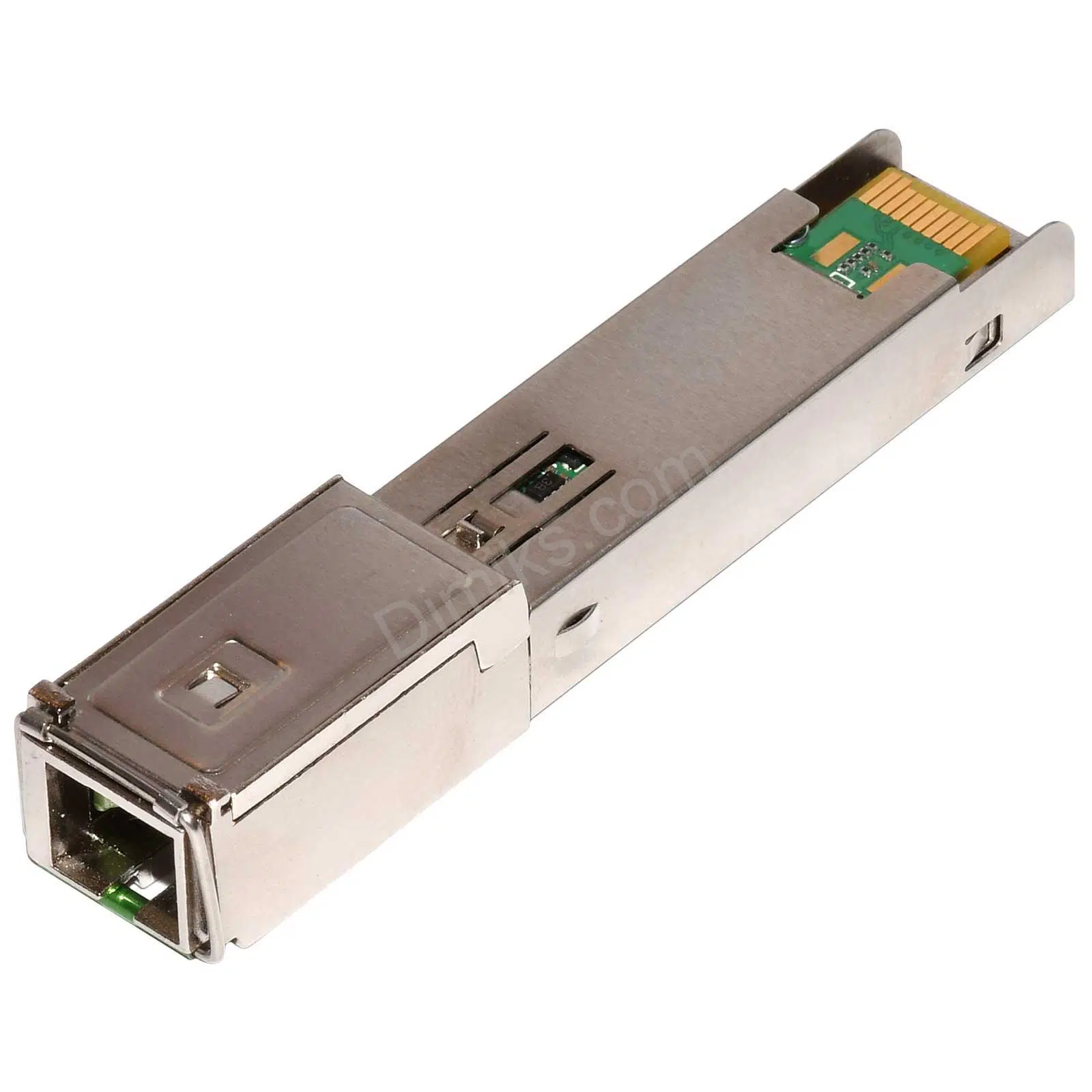

Універсальний GPON (EPON) ONU (ONT) SFP Stick модуль

ATTENTION!
Any change to the firmware will void your warranty.

OMCI_OLT_MODE (Min 0, Max 3, Default is 0)

Configure how ONT Stick handle OMCI from OLT:

• 0 = Default Mode
• 1 = Huawei OLT Mode
• 2 = ZTE OLT Mode
• 3 = Customized Mode

OMCI_FAKE_OK (0 = Disable, 1 = Enable, Default is 0)

Some Fiber Vendor/Wholesale/ISP have explicit LAN Port Number provisioning or proprietary OMCI that ONT Stick cant not understand, this will make ONT Stick reply OK whatever OMCI OLT throw at!

OMCI_TM_OPT (Min 0, Max 2, Default is 2)

Configure OMCI Traffic Management, not info about these value.

VLAN_CFG_TYPE (Min 0, Max 1, Default is 0)

VLAN Configuration Type:

• 0 = Auto Detect
• 1 = Manual (which require VLAN_MANU_MODE to set)

VLAN_MANU_MODE (Min 0, Max 3, Default is 0)

How ONU Stick handle VLAN from PON to ETH interface

• 0 = Transparent Mode
• 1 = Tagging Mode
• 2 = Remote Access Mode
• 3 = Special Case Mode

DIRECT_BRIDGE_MODE (Min 0, Max 1, Default is 1)

Not sure about this, it seem PON interface bridged to LAN under one br0 ?

PON_MODE (Min 1, Max 3, Default is 1)

Configure ONT Stick in which mode:

• 1 = GPON
• 2 = EPON
• 3 = Ethernet

PON_VENDOR_ID (4 ASCII character maximum)

Need to set for OLT Authenticate your ONT stick, please read your original ONT Serial Number, either in HEX digit or ASCII, if in HEX digit, you need convert first eight HEX digit to ASCII, for example 48575443 = HWTC. Here some popular list if want to fool the OLT: ALCL, CCCC, CPGO, GPON, HWTC, UBNT, ZTEG.

GPON_ONU_MODEL (8 ASCII character maximum)

Need to set for OLT Authenticate your ONT stick, enter your original ONT Model, Example: HG8240H5

GPON_SN (12 ASCII character maximum)

Need to set for OLT Authenticate your ONT stick, enter your original ONT Serial Number, must be ASCII form HWTC12345678, you may need to convert first eight HEX digit serial number to ASCII, just like PON_VENDOR_ID

GPON_PLOAM_PASSWD (9 Alphanumeric character maximum?)

Need to set for OLT Authenticate your ONT stick, you can get from original ONT WebGUI.

ELAN_MAC_ADDR (12 Hexadecimal number maximum)

Some OLT have explicit MAC Address can register, you need clone your original ONT MAC Address

FIBER_MODE (Min 1, Max 3, Default is 0)

If PON_MODE=3 is set, FIBER_MODE become available and update /proc/fiber_mode.

• 0 = Pre-defined
• 1 = AN 1G
• 2 = Auto
• 3 = Force 1G
• 4 = Force 100M

DEVICE_TYPE (Min 0, Max 2, Default is 0)

• 0 = bridge
• 1 = router
• 2 = hybrid (both)

OMCI_VEIP_SLOT_ID (Integer Value, Default is 255)

Virtual Ethernet Interface Point Slot Id, you may need find VEIP Id from old ONU, try save configuration and find veip, for example: Huawei HG8240H5
