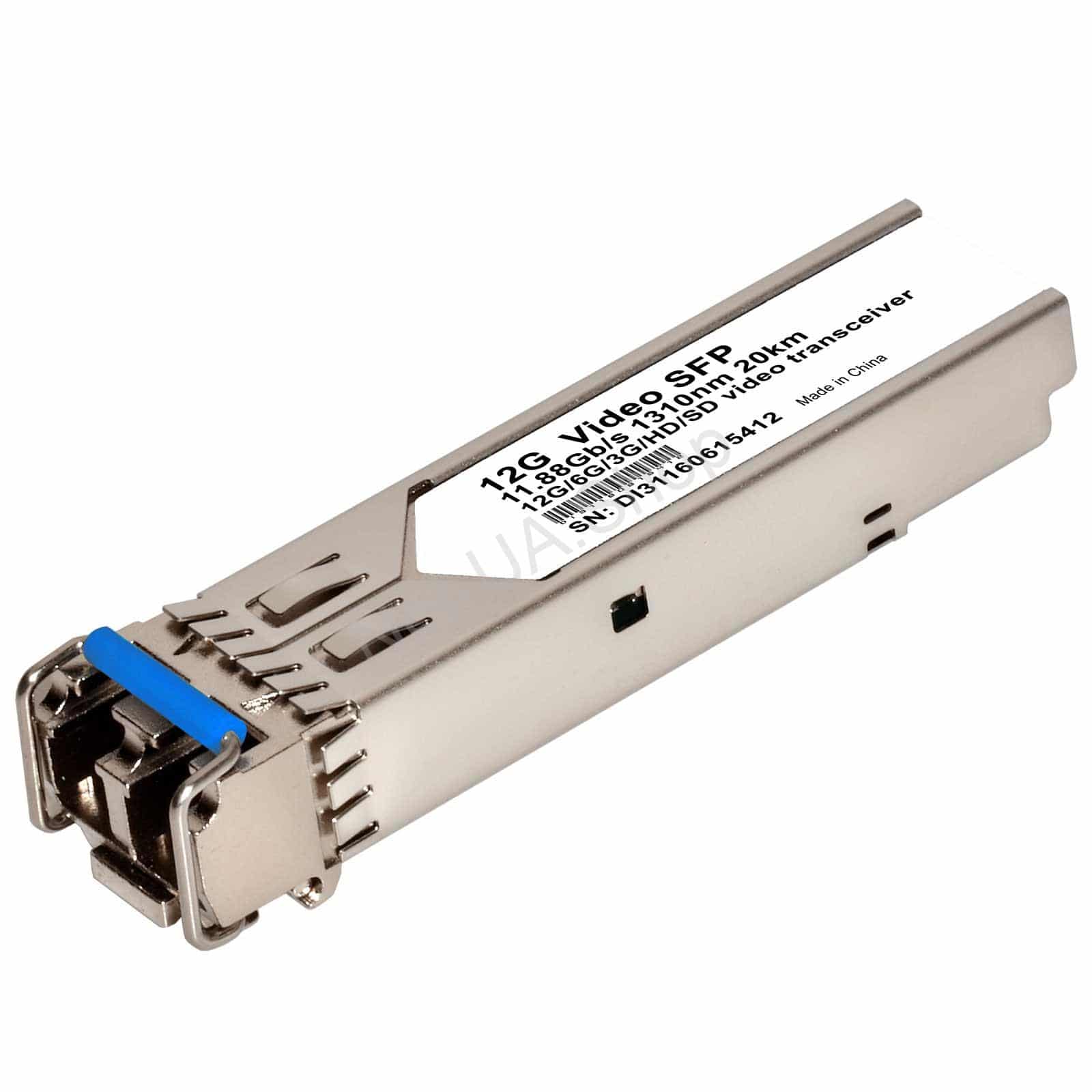

Name: Video SDI SFP+ 12G (6G/3G) 20km 1310nm
SKU: 4269
Availability: InStock

Video SDI SFP+ 12G (6G/3G) 20km 1310nm

4,853.00 грн.

Video SDI SFP 12G 20 km (12.4 mi) 1310 nm Трансивер модуль

Video SDI SFP 12G 20 km (12.4 mi) 1310 nm Трансивер

Інформація про продукт

Параметр	Специфікації
Type	Video SDI SFP
Distance	20 km (12.4 mi)
Data rate	12 Gb/s (compatible 6G, 3G, HD, SD)
Wavelength	Tx/Rx 1310 nm
Fiber/Cable Type	Singlemode Fiber
Connector	LC, Duplex Connector
Operating temperature range	Commercial: 0℃ to 70℃ (32℉ to 158℉)
Manufacturer	Third Party

Features
SD/HD/3G/6G/12G-SDI SFP Transceiver
ST 259, ST 292-1,ST 424, ST-2081 and ST-2082 compatible
Metal enclosure for Lower EMI
Support pathological patterns for SD-SDI, HD-SDI, 3G-SDI,6G-SDI and 12G SDI
The module’s receiver contains reclocker
single 3.3V power supply

Applications
Serial Digital Fiber Transmission System for SMPTE ST 259, SMPTE ST 344, SMPTE ST 292-1/2, SMPTE ST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals UHDTV/HDTV/SDTV Service Interfaces.

Description
Video transceiver is designed to transmit/receive data rates from 50Mbps to 11.88Gbps, compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST 259 (SD-SDI). Video transceiver supports SDI pathological patterns signals. The transceiver includes threse sections: a DFB laser, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), Reclocker, and a MCU controller. The transceiver is compatible with SFP Multi-Source Agreement (MSA).

Спочатку діапазон робочих температур Комерційний: від 0 до 70℃ (від 32 до 158℉).
Якщо вам потрібен діапазон температур Промисловий: від -40℃ до + 85℃ (від -40℉ до 185℉), будь ласка, зв'яжіться з нами перед оплатою.
