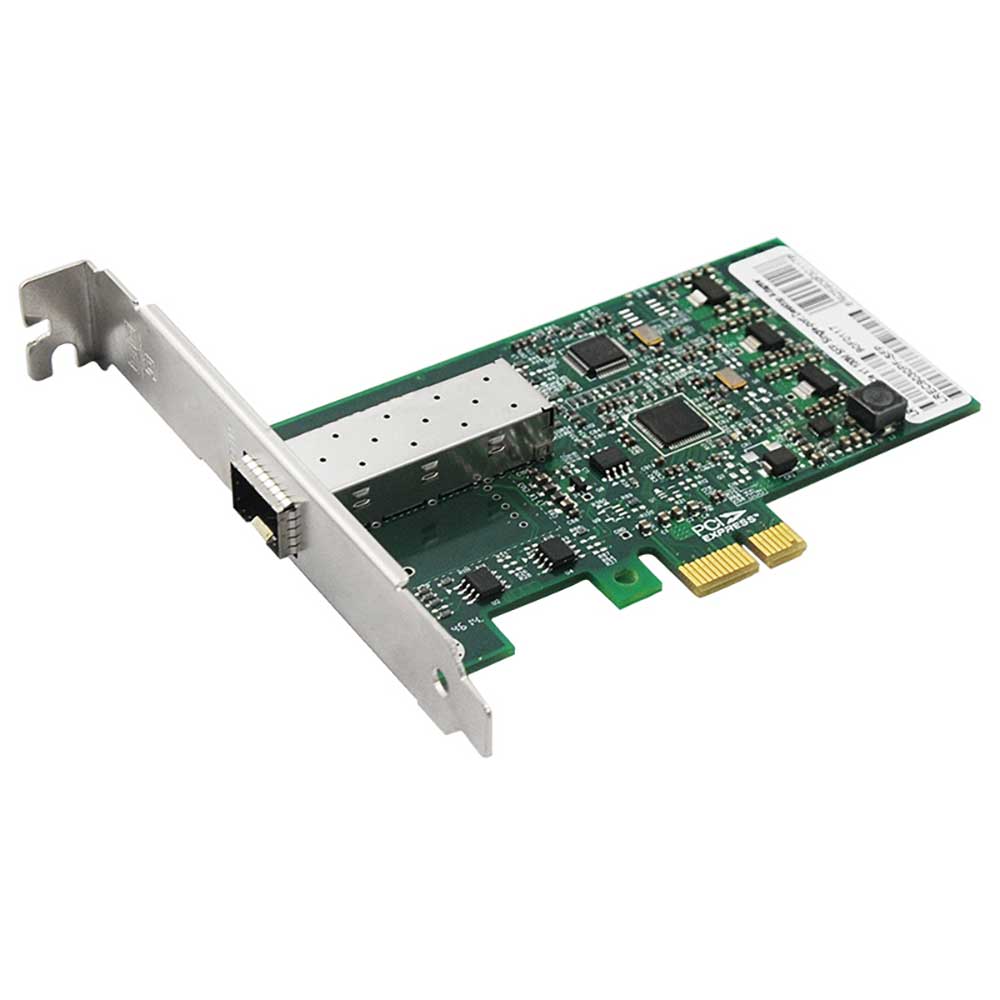

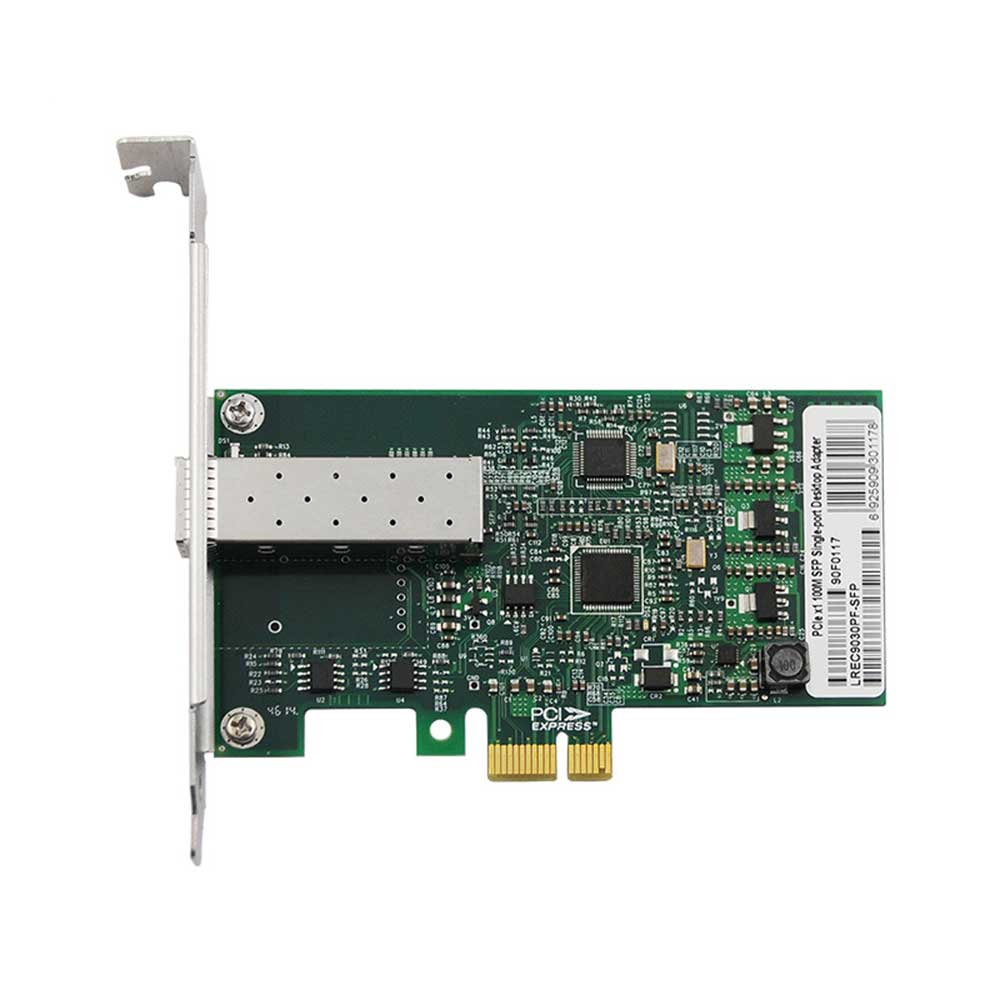

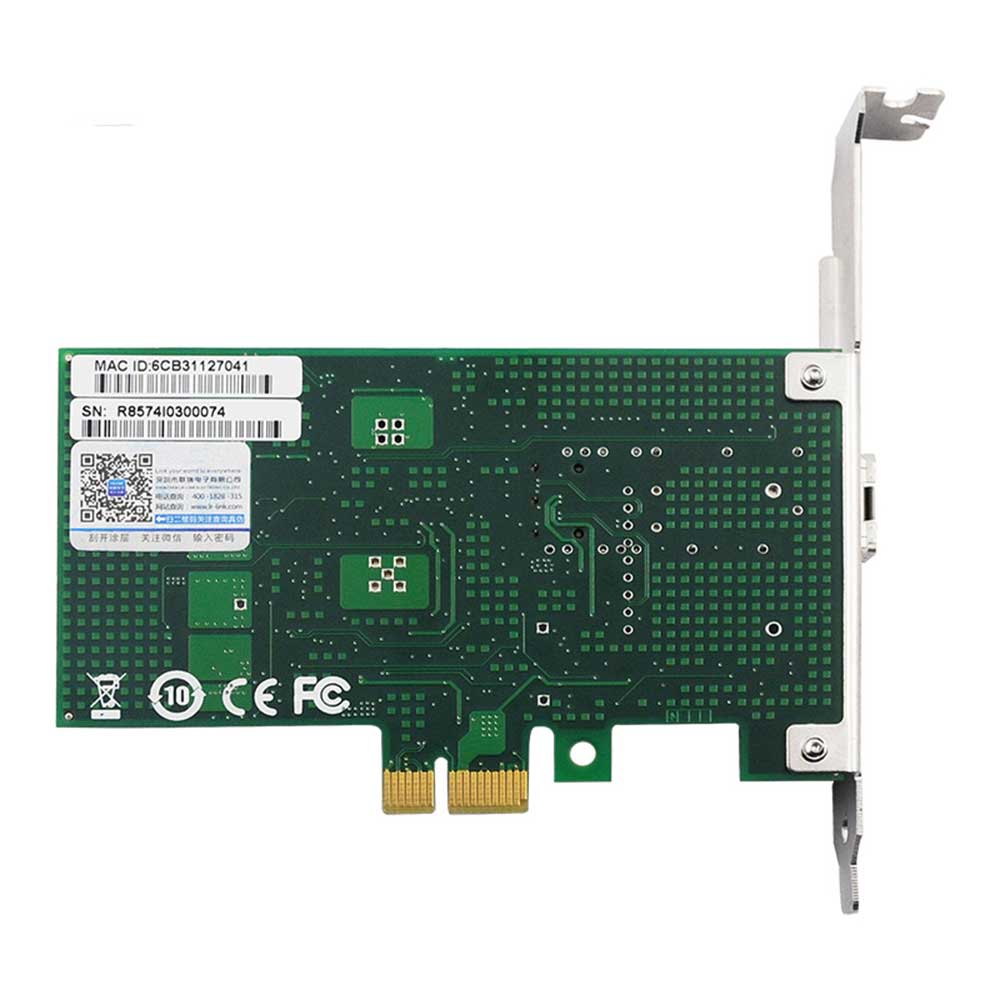

Name: 100M (100FX) Оптична мережева карта 1x SFP (Intel 82574)
Brand: Intel
SKU: 4515
Availability: OutOfStock

100M (100FX) Мережева Карта 1x SFP (Intel 82574 based)

Опис:

Datasheet:

ОСОБЛИВОСТІ ПРОДУКТУ

Single-port PCI-Express 100FX Ethernet adapter
High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
According to customer’s demands, we can select SC, LC, ST, FC and SFP fiber interface
100Mbps fast ethernet, Full duplex or half-duplex, reach 200Mbps in full duplex
Support IEEE 802.3x flow control
Support IP Unicast broadcast and multicast address filtering mechanism
Support priority queue
Support IEEE 802.1Q VLAN tagging
Support IP multicast packet filte reduces host CPU use
Interrupt moderation
Compatible with Fast Ethernet and Ethernet
Support for most network operating systems
Advanced configuration and power interface (ACPI);Wake on LAN* (WoL); Preboot Execution *Environment (PXE) Remote Management Support
Intel® PROSet Utility for Microsoft* Device Manager
Advanced cable diagnostics
Optimized queues: 2 Transmit (Tx) and 2 Receive (Rx) MSI-X support

All Description and Features

Basic Features

Connector	SC、ST or LC (Fiber)
IEEE standard/network topology	100BASE-SX/LX
Cabling Distance	100BASE-SX: 275 m at 62.5 µm; 550 m at 50 µm 100BASE-LX: 10Km at 9µm;
Data rate supported per port	100 Mbps
Bus Type	PCI Express* 2.1 (2.5GT/s)
Interrupt levels	INTA, INTB, INTC, INTD, MSI, MSI-X
Bus Width	1-lane PCI Express; operable in x1 or greater slots
Hardware certifications	FCC , CE
Controller – processor	Intel® Ethernet Controller 82574
Power consumption (active-typical)	0.75 W
Operating temperature	0℃ to 55℃ (32℉ to 131℉)
Storage temperature	-40℃ to 70℃ (-40℉ to 158℉)
Storage humidity	90% non-condensing relative humidity at 35℃
Connect speed LED Indicators	Link/Activity LED: off = No Link; on = Link; Blinking = Activity
Full-height end bracket	12.07 cm ( 4.755 inches)
Low-profile end bracket	8 cm (3.15 inches)

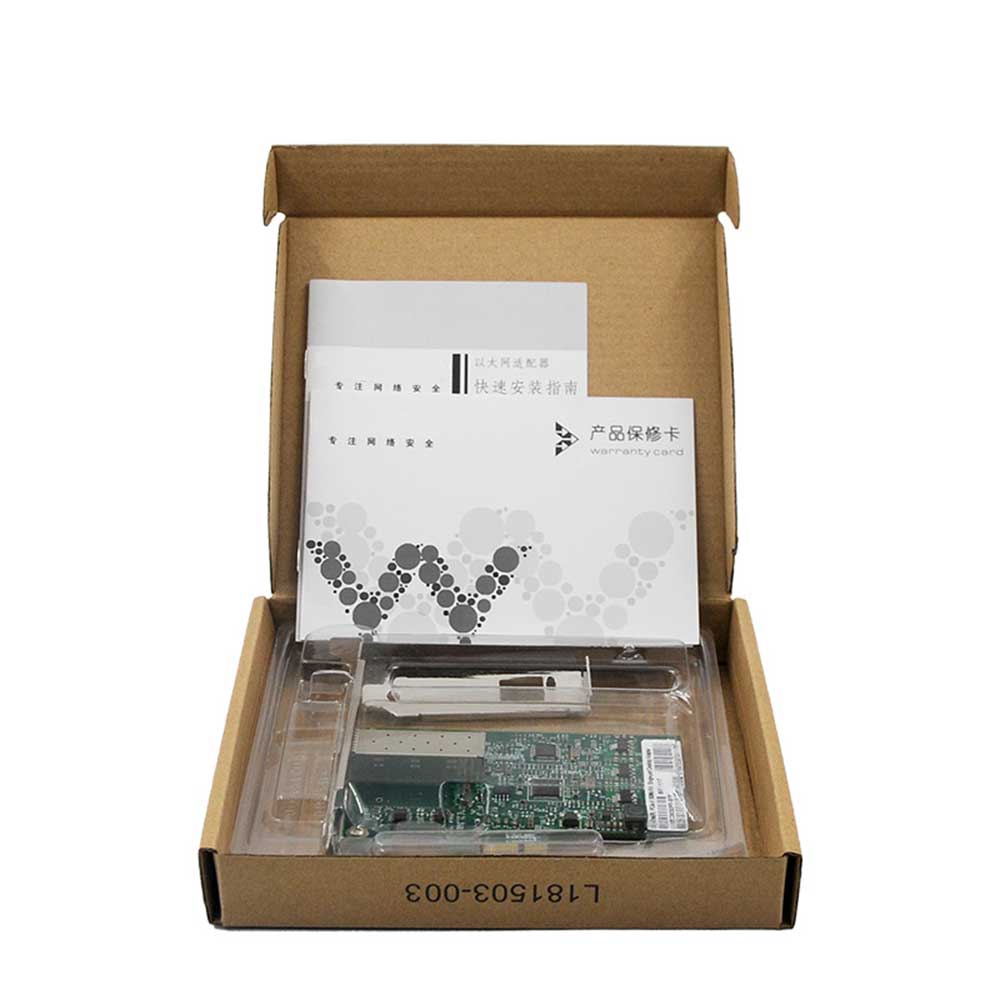

Packing specification	18x15x3cm(7.08×5.9×1.18 inches)

Мережева Карта НЕ ВИМАГАЄ SFP сумісні з Intel. Можна використовувати будь-які SFP трансивери (немає необхідності прошивати SFP для Intel).
