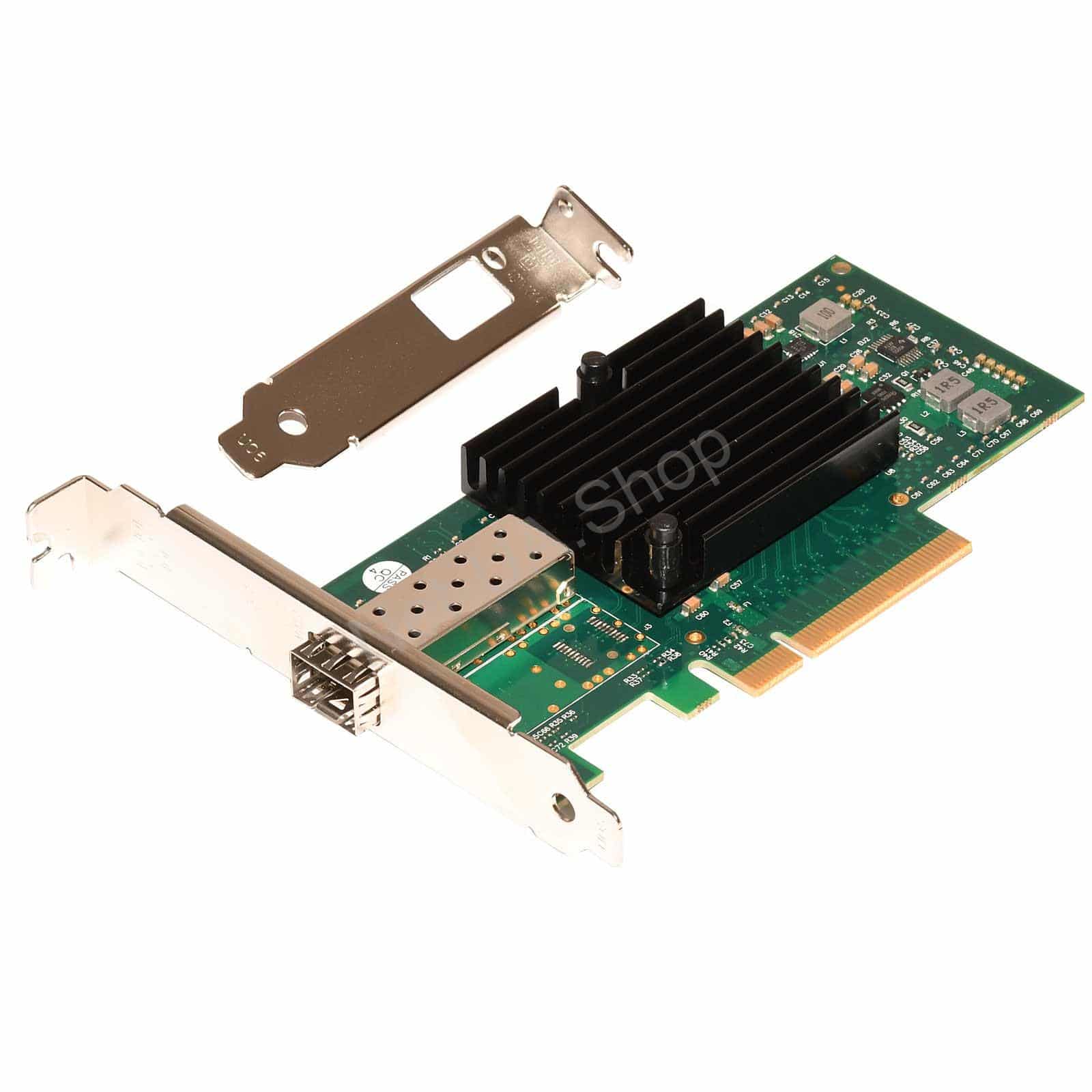

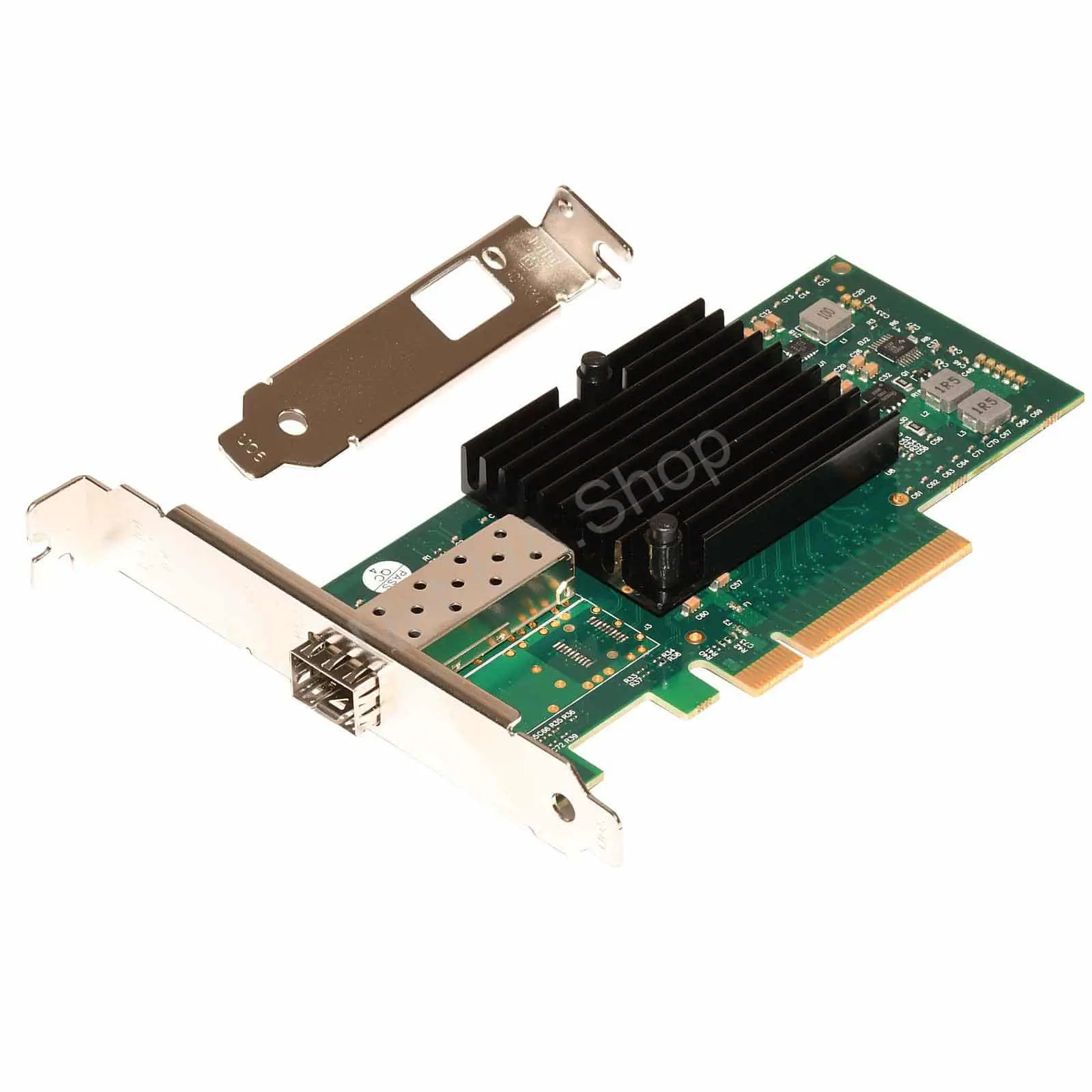

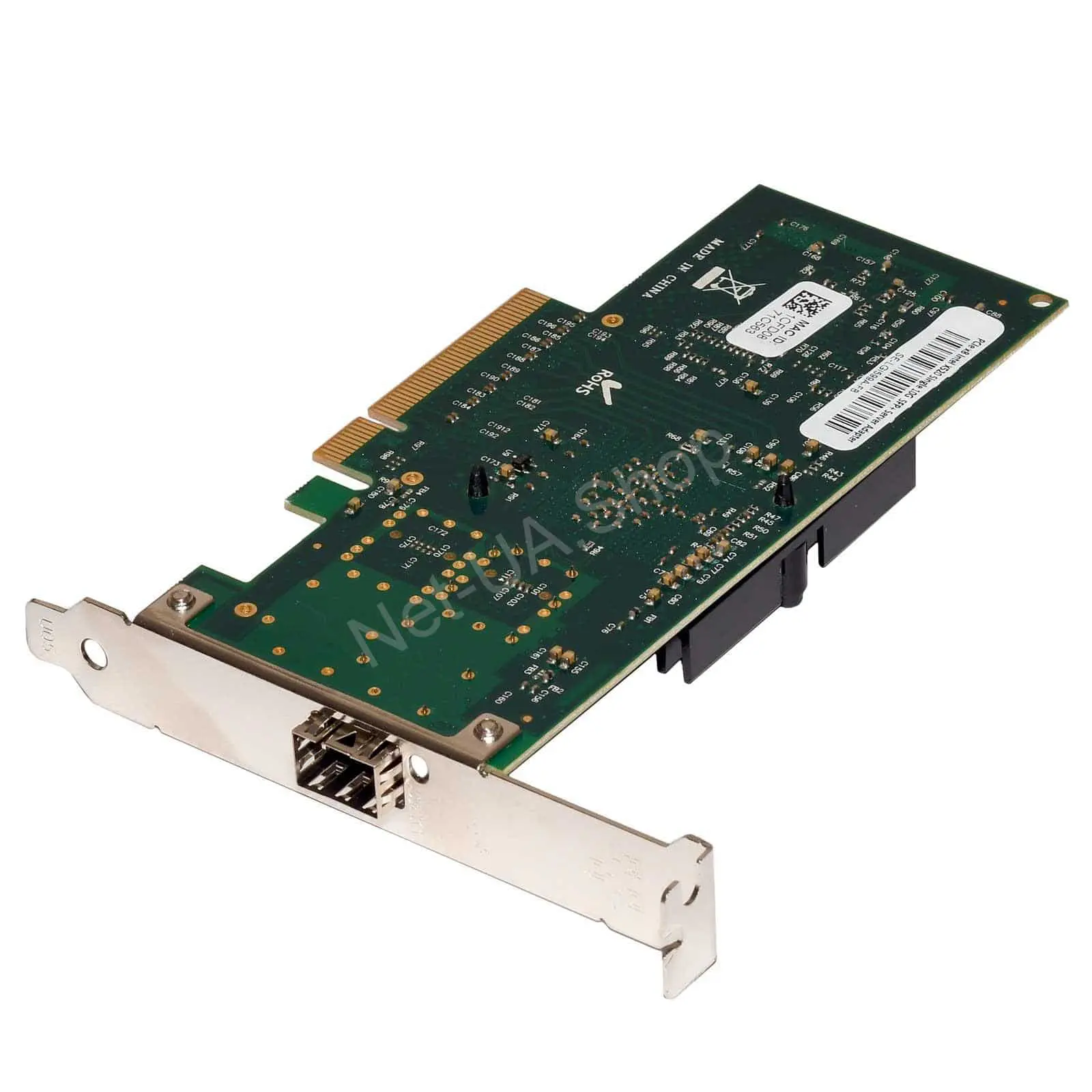

Name: 10G/1G Універсальна Серверна Мережева Карта 1x SFP+ (x520-DA1, Intel 82599EN)
Brand: Intel
SKU: 12169
Availability: InStock

10G/1G Універсальна Серверна Мережева Карта 1x SFP+ (x520-DA1, Intel 82599EN)

2,193.00 грн.

10G/1G Універсальна Серверна Мережева Карта 10G/1G, 1x SFP+ ports (Intel x520-DA1, 82599EN Based)

(82599ES — Dual-port, 82599EN — Single-port)

10G/1G Універсальна Серверна Мережева Карта 1x 10G SFP+ port (x520, Intel 82599EN Based)

Опис

Transforming the data center through a reliable and unified 10GbE network

Доступні дві версії

82599ES — Dual-port serial 10 GbE backplane interface for blade implementations (includes the 82599EB SKU functionality plus KR and SFI interfaces).
82599EN — Single-port serial 10 GbE SFI interface for blade implementations.

ОСОБЛИВОСТІ ПРОДУКТУ

PCI Express* 2.0, Dual port 10 Gigabit Ethernet controller deliver the performance that demanding applications require.
Industry-leading product innovations for I/O virtualization that are ideal for the dynamic data center.
Unified networking support simplifies the network infrastructure by allowing LAN, SAN, and IPC traffic to share the same data center fabric.
Energy-efficient design with integrated SFI/KR PHYs that creates new opportunities for Blades and LAN-on-motherboard (LOM) solutions.
High-volume stable architecture with broad operating system support.
Advanced features such as Receive Side Coalescing, Intel® Ethernet Flow Director, and support for PCI Express* 2.0 help deliver new levels of 10GbE performance
Intel® Virtualization Technology 1 for Connectivity (Intel® VT-c) delivers industry-leading I/O virtualization capabilities that provide flexibility, scalability and mobility
Advanced unified networking capabilities, including support for lossless Ethernet, iSCSI acceleration, NAS, and Fibre Channel over Ethernet (FCoE) offloads help consolidate data center networks onto a single Ethernet fabric

All Description and Features

Basic Features
Main Chipset	Intel® 82599EN
Bus Type	PCI Express* 2.0 (5GT/s) , operable in X8 or greater slots
Connector	SFP+ LC (Fiber Optic)
Transmission rate	10000 Mbps
	Provides automatic configuration between 1000BASE-KX, 10GBASE-KX4, and 10GBASE-KR modes


Function	IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
IEEE Standard / Network topology	10GBASE-SR, 10GBASE-LR, 10GBASE-T
IEEE Standard / Network topology	IEEE 802.1p,IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x,IEEE 802.3z, IEEE 802.3ad
System Requirements	Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
	Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
	DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
Applicable fields	Desktops, Servers, Workstations
Hardware
Power	5.5 W
Certifications	FCC, CE, RoHS
Metal Bracket	Full-height end bracket / Low-profile end bracket
LED Indicators	10Gb/s= Activity Yellow / Link Green
LED Indicators	10Gb/s= Activity Yellow / Link Green
Environmental
Operating temperature	0 ~ 55 ℃ (32 ~ 131℉)
Storage temperature	-40 ~ 70 ℃ (-40 ~ 158 ℉)
Storage humidity	90% Non-condensing relative humidity at 35 ℃

Серверна Мережева Карта (Intel I350 Based) НЕ ВИМАГАЄ SFP сумісні з Intel. Можна використовувати будь-які SFP трансивери (немає необхідності прошивати SFP для Intel).
