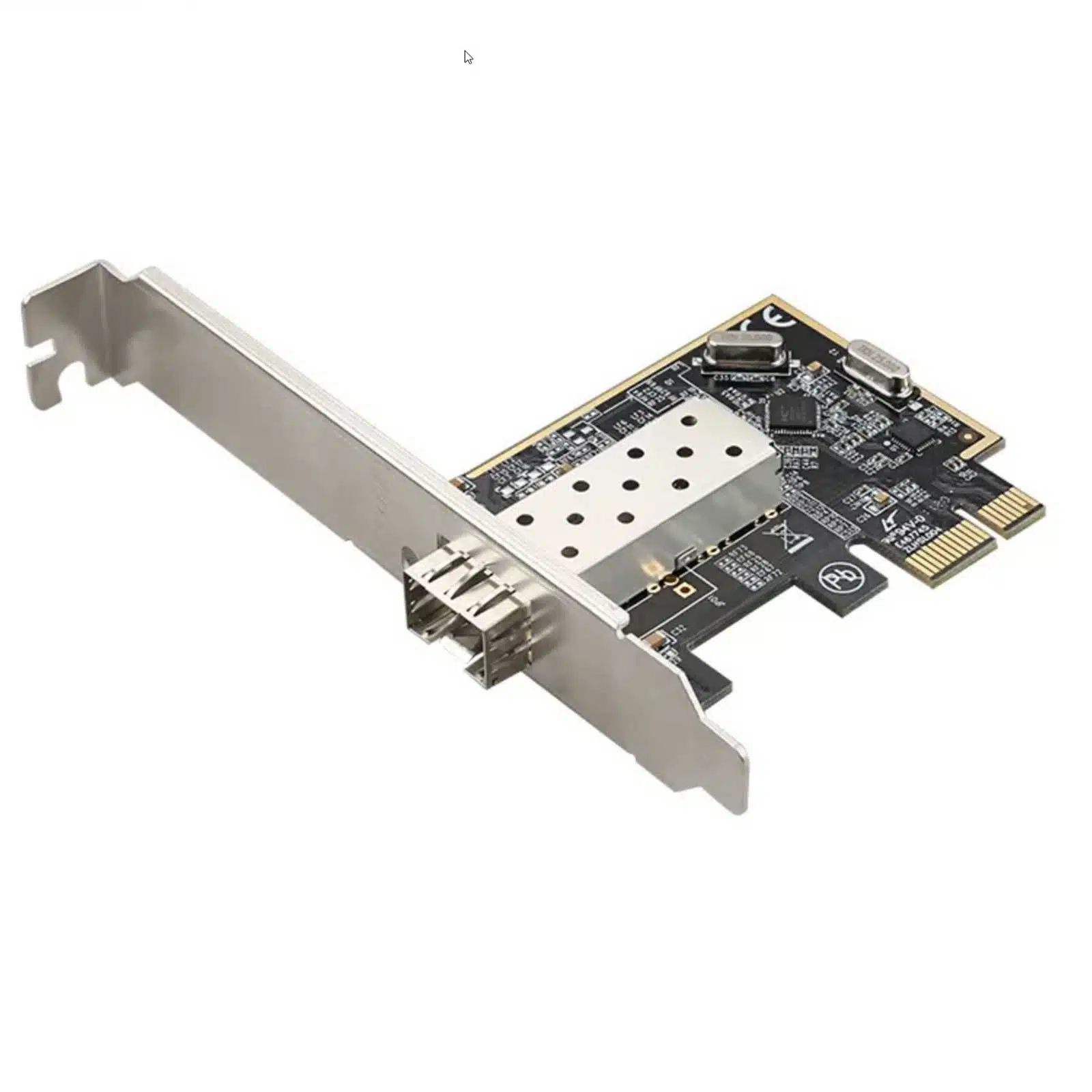

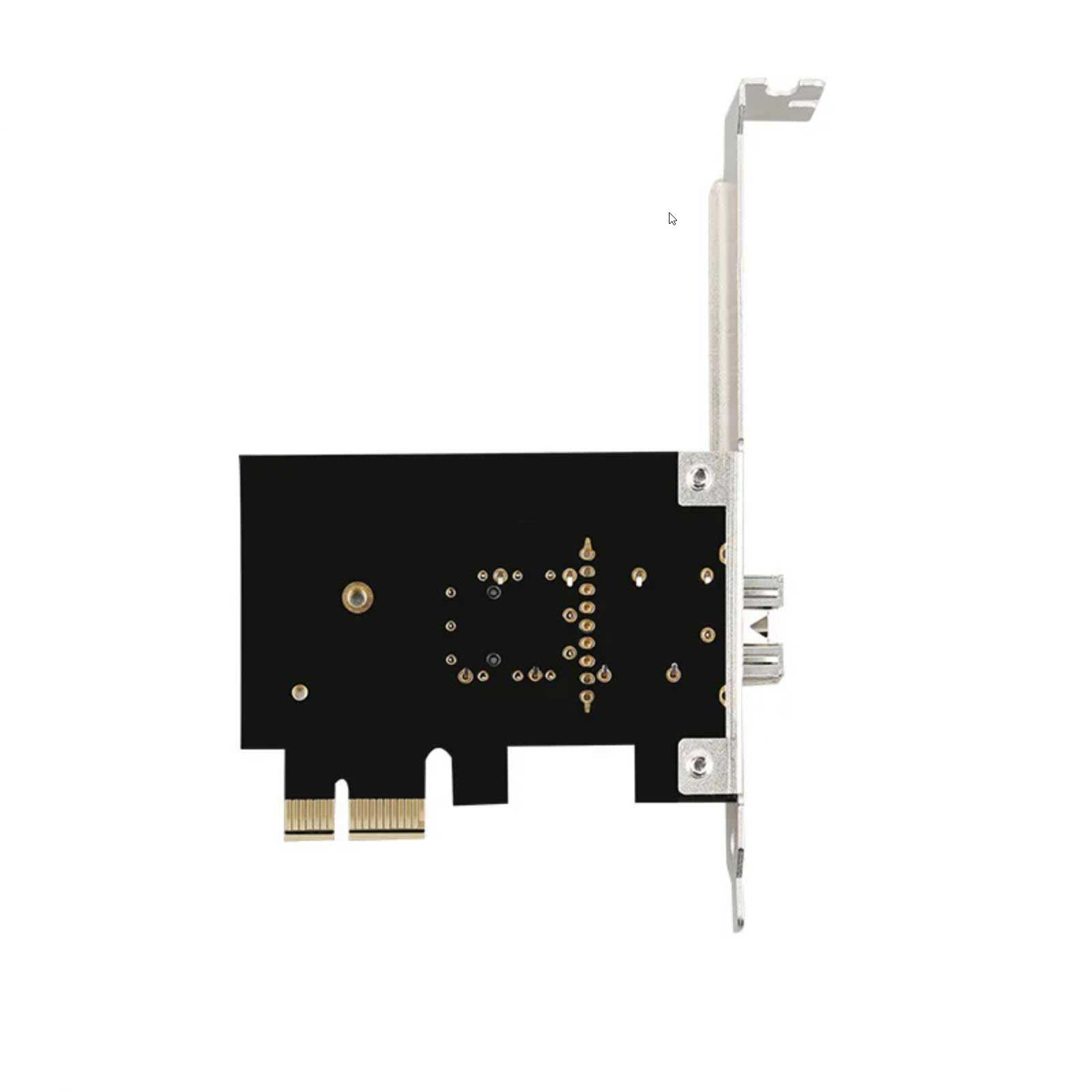

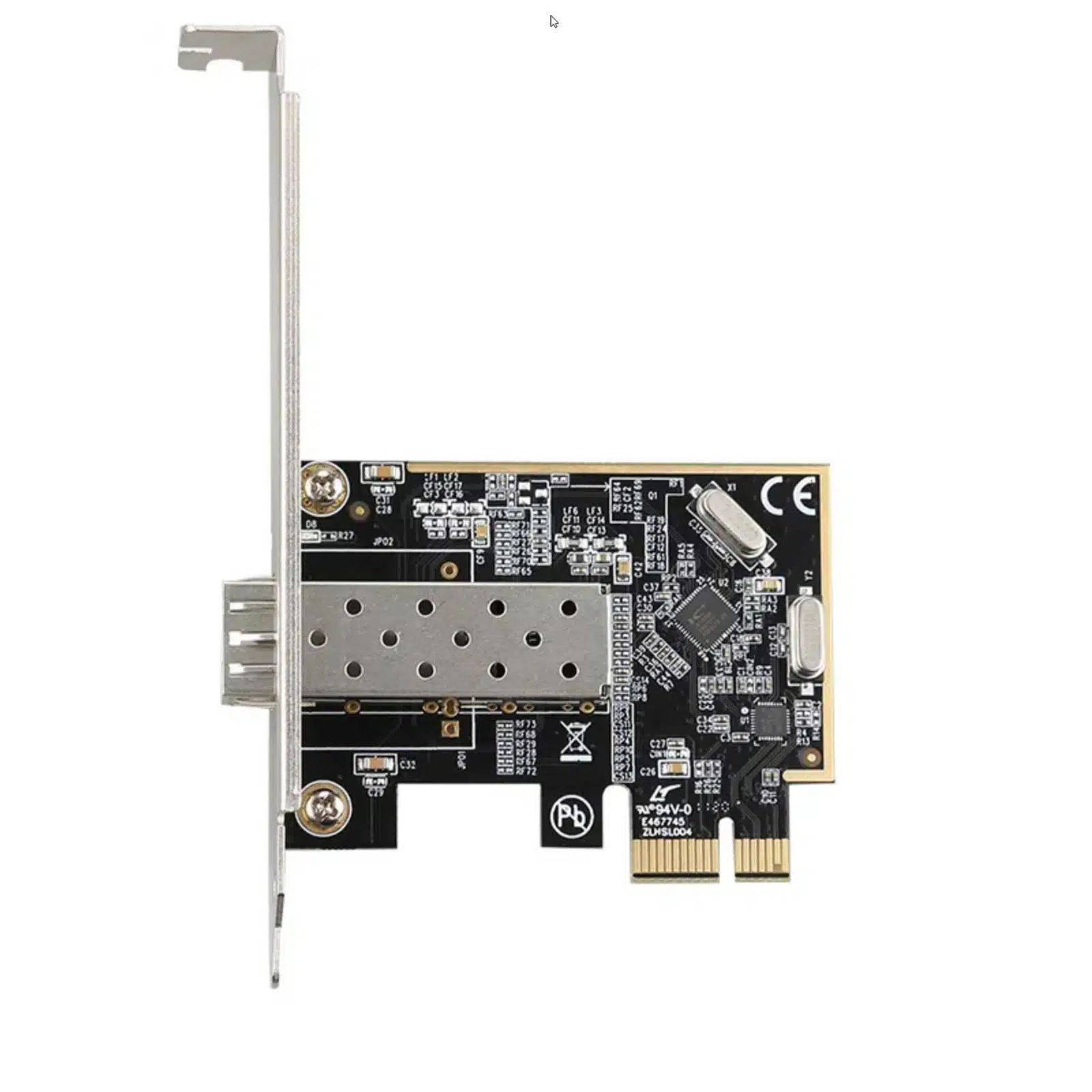

Name: 10/100M (100FX) Оптична мережева карта 1x SFP (Realtek RTL8106E)
Brand: Realtek
SKU: 4514
Availability: InStock

10/100M (100FX) Оптична мережева карта 1x SFP (Realtek RTL8106E)

40$

10/100M (100FX) Мережева Карта 1x SFP (Realtek RTL8106E based)

Опис:

Datasheet:

ОСОБЛИВОСТІ ПРОДУКТУ

• 100Mbps fast ethernet, full duplex or half-duplex, reach 200Mbps in full duplex
• Supports Fully/Half-duplex Auto-Negotiation, Auto-MDI/MDIX
• Compatible with most Fast SFP modules
• Compliant with IEEE 802.3u 100Base-FX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control
• Compliant with PCI Express Rev 1.1 specification, using PCIe x1 (or higher) slot
• Complies with Microsoft and Linux platforms

All Description and Features

Basic Features

Hardware	Bus Type Card Type	PCI Express x1 Standard/Low Profile
	Chipset ID	Realtek – RTL8106E ICPlus – IP102GA
	Industry Standards	IEEE 802.3u, IEEE 802.1Q, IEEE 802.1P, IEEE 802.3x
	Interface	SFP (Fast Ethernet)
	Ports	1
Performance
	Compatible Networks	100Mbps
	Full Duplex Support	Yes
	Maximum Data Transfer Rate	200Mbps – Full Duplex
	Supported Protocols	IEEE 802.3u (100Base-FX) IEEE 802.3x (Flow Control Support) IEEE 802.1Q (VLAN tagging)
Software	OS Compatibility	Windows® 7, 8.x, 10 Windows Server® 2008 R2, 2012, 2016,2019 Linux 2.6.x to 4.x

Special Notes / Requirements

	System and Cable Requirements	PCI Express enabled computer with an available PCI Express x1, x4, x8 or x16 slot
Indicators	LED Indicators	1 – Act (Green)
Environmental	Humidity	20~80% RH
	Operating Temperature	5°C to 50°C (41°F to 122°F)
	Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Physical Characteristics	Product Height	120 mm
	Product Length	79 mm
	Product Weight	38 g
	Product Width	22 mm

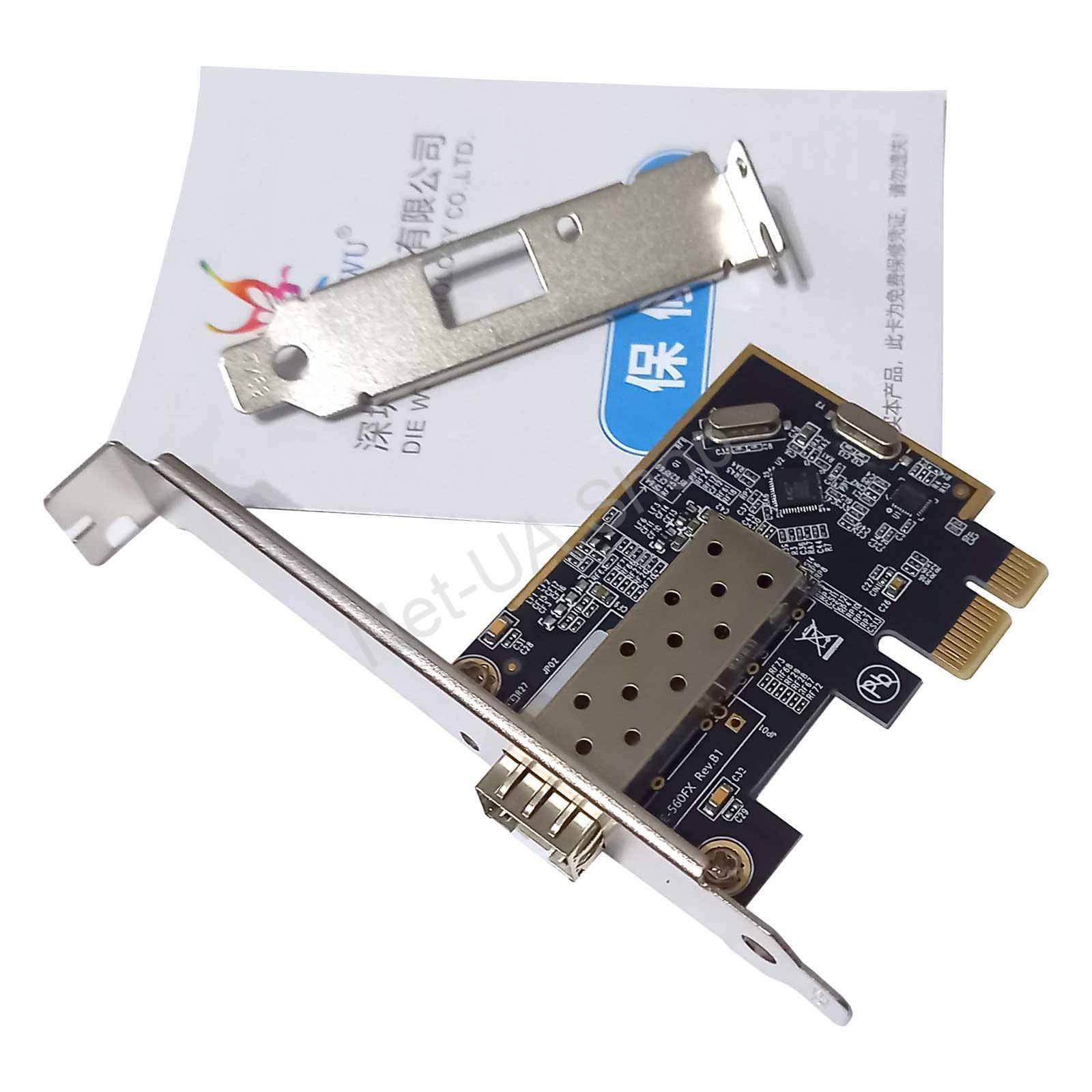

What’s in the Box	Included in Package	1 – 1-Port 100Mbps Ethernet SFP Network Card
