Мережева Карта 10G, 2x SFP+ порта (NIC Mellanox ConnectX®-3 Based)

40G Мережева Карта 2x QSFP+ (Mellanox ConnectX®-3)

Name: 40G Мережева Карта 2x QSFP+ (Mellanox ConnectX®-3)
Brand: Mellanox
SKU: 15207
Availability: InStock

13,082.00 грн.

40G Серверна Мережева Карта, 2x 40G QSFP+ порта (NIC Mellanox ConnectX®-3 Based)

Порівняти

Додати до списку бажань

Артикул: 15207 Категорія: Мережеві карти (NIC)

Опис
Q & A

Опис

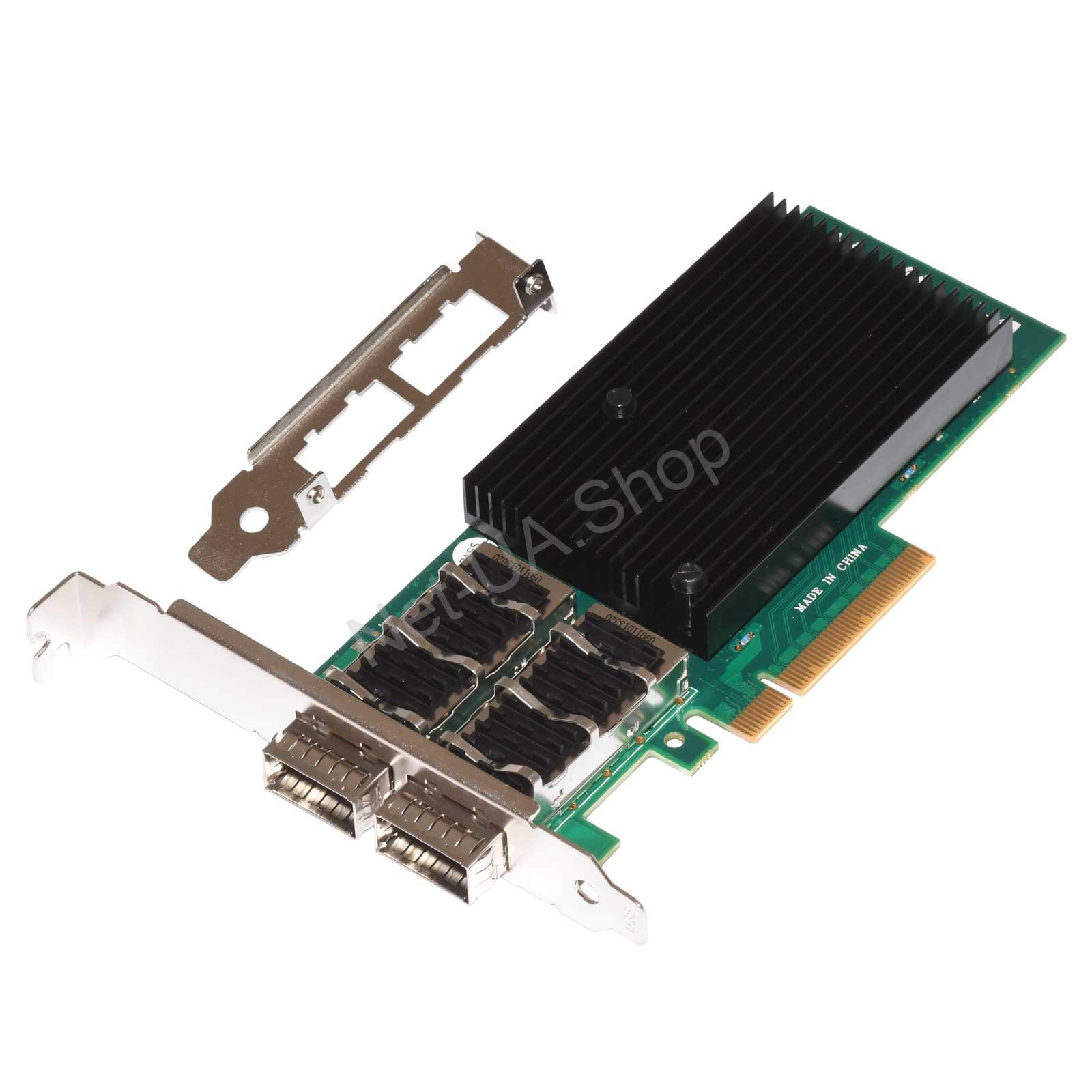

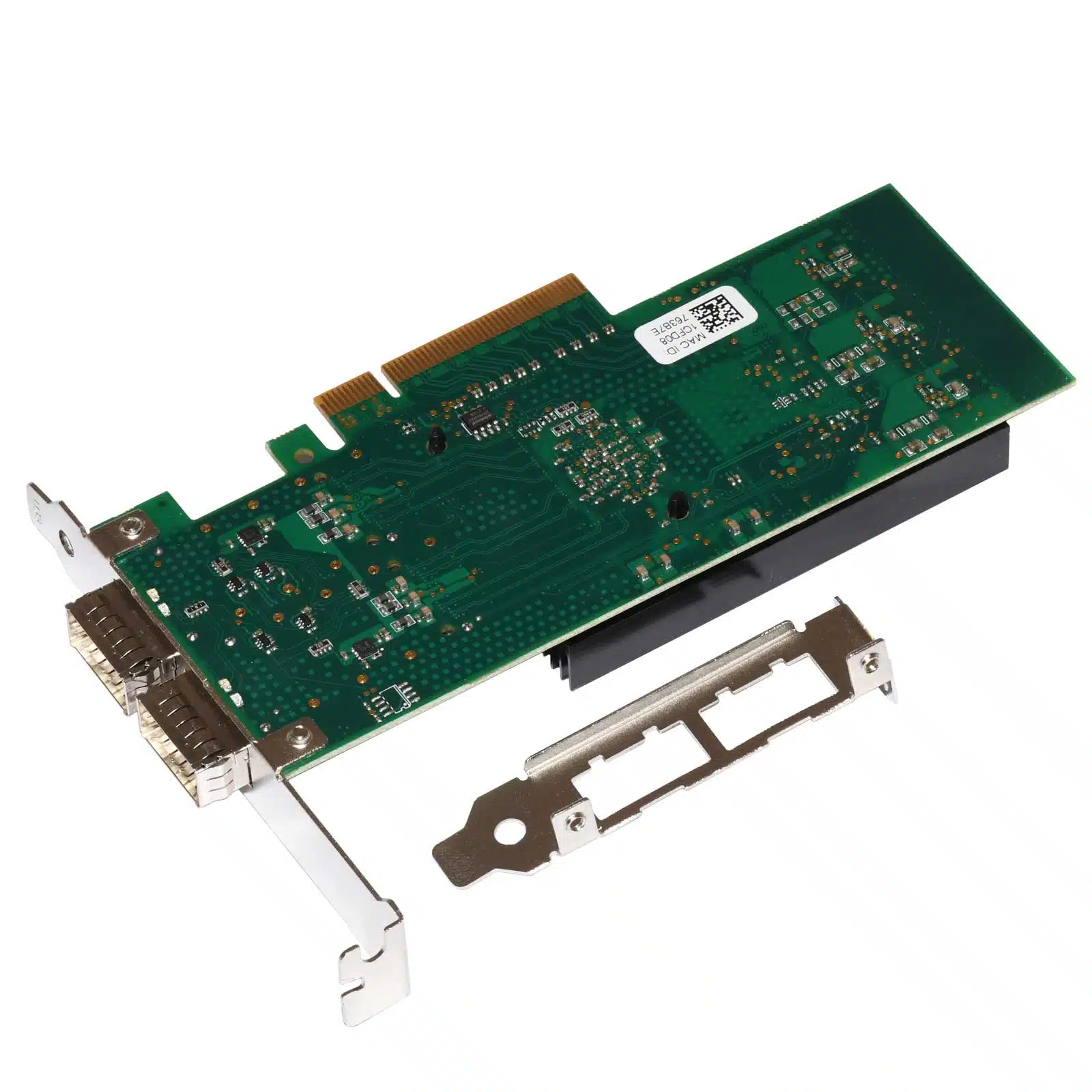

40G Мережева Карта, 2x 40G QSFP+ порта (NIC Mellanox ConnectX®-3 Based)

Опис:

Двопортовий адаптер PCIe x8 Mellanox Connectx-3 40G SFP+ з інтерфейсом PCI Express 3.0 забезпечує високу пропускну здатність і найкраще в галузі підключення до Ethernet для орієнтованих на продуктивність серверів і програм зберігання даних у корпоративних центрах обробки даних, високопродуктивних обчисленнях і вбудовуваних середовищах.

Features

PCI-Express host interface specification v3.0 x8 and Complete with PCIe2.0 and 1.1
Two 40 Gigabit QSFP+ Ethernet ports
Compliant with QSFP+ MSA Spec Rev 1.0
Two QSFP ports supporting FDR-14 InfiniBand or 40Gb Ethernet
Support for InfiniBand FDR speeds of up to 56Gbps (auto-negotiation FDR-10, DDR and SDR)
Low-profile form factor adapter with 2u bracket
Virtual protocol interconnect (VPI)
InfiniBand Architecture specification v1.2.1 compliant
IEEE Std. 802.3 compliant
Compliant with copper cables and optical cables with the use of QSFP connectors.
Support for SFP+ cables available through QSA (Quad to Serial)
CORE-DirectR application off-load
GPUDirect application off-load
RDMA over converged Ethernet (RoCE)
End-to-End QoS and congestion control
TCP/UDP/IP stateless off-load
Ethernet encapsulation (EoIB)
SR-IOV support;16 virtual functions supported by KVM and Hyper-V(OS dependant ) up to a maximum 127 virtual functions supports by the adapter
Enables low latency RDMA over 40GbEthernet (supported with both non-virtualized and SR-IOV enable virtualized servers)—latency as low as 1us
Traffic steering across multiple cores
Microsoft VMQ/VMware Net Queue support
Industry-leading throughput and latency performance
Legacy and UEFI PXE network boot support
Supports iSCSI as a software iSCSI initiator in NIC mode with NIC driver
Supports Operation Systems: FreeBSD, Linux5.x and above, VMware, Windows server2008/2012/2016/2019, win7/win8/win8.1/win10 32 or 64bit

All Description and Features

Package content

1 x PCIe x8 Mellanox Connectx-3 Dual-Port 40G QSFP adapter
1 x User’s Manual
1 x CD Driver
1 x Low profile bracket
Accessories

System Requirements

FreeBSD, Linux , VMWare ESXi
Win-server2008 R2/ Win-server2012 R2/ Win-server2016/Win-server2019
Windows: 7/8/8.1/10 32/64bit
One available PCI Express x8/x16 slot

Hardware installation

Turn off the computer and unplug the power cord
Remove the computer cover and the adapter slot cover from the slot that matches your adapter
Insert the adapter edge connector into the slot and secure the bracket to the chassis
Replace the computer cover ,then plug in the power cord
Power on the computer

Install Drivers and software

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):
if the Found New Hardware Wizard screen is displayed, click Cancel
select a driver based on the system type

for Windows Server type: D(Assume that D):

“D:NIC DriversMellanoxConnectionX-3Windows Server”

for Windows type: D(Assume that D):

“D:NIC DriversMellanoxConnectionX-3Windows Client”
